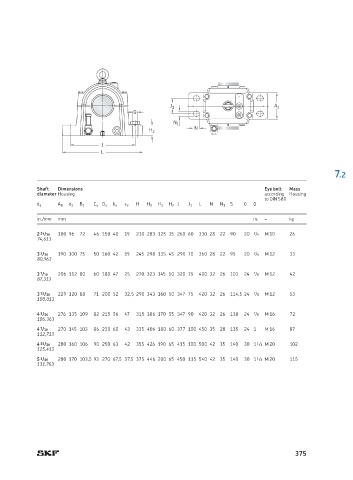

Page 379 - SKF-bearing-housings

J 1 A 1
G
N 1
N
H 2
J
L

7.2
Shaft Dimensions Eye bolt Mass
diameter Housing according Housing
to DIN 580
H H 2 J L N S G G
d a A B d 1 B 1 C a D a b a s 2 H 0 H 1 J 1 N 1
in./mm mm in. – kg

2 15 /16 180 96 72 46 150 40 19 230 283 125 35 260 60 330 28 22 90 20 3 /4 M 10 26
74,613
3 3 /16 190 100 75 50 160 42 19 245 298 135 45 290 70 360 28 22 95 20 3 /4 M 12 33
80,963
3 7 /16 206 112 80 60 180 47 25 270 323 145 50 320 75 400 32 26 103 24 7 /8 M 12 42
87,313
3 15 /16 229 120 88 71 200 52 32,5 290 343 160 50 347 75 420 32 26 114,5 24 7 /8 M 12 53
100,013
4 3 /16 276 135 109 82 215 56 47 315 386 170 55 347 90 420 32 26 138 24 7 /8 M 16 72
106,363
4 7 /16 270 145 103 86 230 60 43 335 406 180 60 377 100 450 35 28 135 24 1 M 16 87
112,713
4 15 /16 280 160 106 90 250 63 42 355 426 190 65 415 100 500 42 35 140 30 1 1 /4 M 20 102
125,413
5 3 /16 280 170 103,5 93 270 67,5 37,5 375 446 200 65 450 115 540 42 35 140 30 1 1 /4 M 20 115
131,763

375
