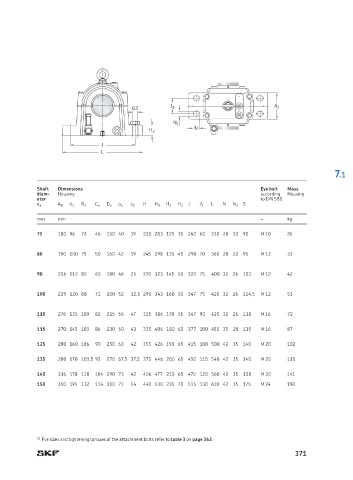

Page 375 - SKF-bearing-housings

G 1) J 1 A 1

N 1
N
H 2
J
L

7.1
Shaft Dimensions Eye bolt Mass
diam - Housing according Housing
eter to DIN 580
H J L N S
d a A B d 1 B 1 C a D a b a s 2 H 0 H 1 H 2 J 1 N 1
mm mm – kg
75 180 96 72 46 150 40 19 230 283 125 35 260 60 330 28 22 90 M 10 26

80 190 100 75 50 160 42 19 245 298 135 45 290 70 360 28 22 95 M 12 33

90 206 112 80 60 180 46 25 270 323 145 50 320 75 400 32 26 103 M 12 42

100 229 120 88 71 200 52 32,5 290 343 160 50 347 75 420 32 26 114,5 M 12 53

110 276 135 109 82 215 56 47 315 386 170 55 347 90 420 32 26 138 M 16 72

115 270 145 103 86 230 60 43 335 406 180 60 377 100 450 35 28 135 M 16 87
125 280 160 106 90 250 63 42 355 426 190 65 415 100 500 42 35 140 M 20 102

135 280 170 103,5 93 270 67,5 37,5 375 446 200 65 450 115 540 42 35 140 M 20 115
140 316 178 118 104 290 73 42 406 477 215 65 470 120 560 42 35 158 M 20 141
150 350 195 132 114 310 77 54 440 530 235 70 515 130 610 42 35 175 M 24 190

1) For sizes and tightening torques of the attachment bolts refer to table 3 on page 363.
