Ordering information

Accessories Order example
Two plummer block housings are required
Condition monitoring sensors are available for two 22224 EK spherical roller bearings
for SONL plummer (pillow) block housings. on H 3124 adapter sleeves. One housing will
For additional information, refer to SKF tools accommodate the non-locating bearing at
and products († page 47). the end of the shaft. The other housing will
accommodate the locating bearing on a
through shaft. The oil needs to be cooled
Ordering information by two oil cooling tubes per housing.
The following items should be ordered:
For SONL plummer (pillow) block housings,
each of the following items must be ordered • 2 housings SONL 224-524
separately: • 1 seal kit TSO 524
• 1 seal kit TSO 524 A
• housing • 2 locating rings FRB 12/215
• seal kit (see page 358 for details) • 4 oil cooling tubes AVA 0001/3
• locating rings 7
• bearing
• adapter sleeve

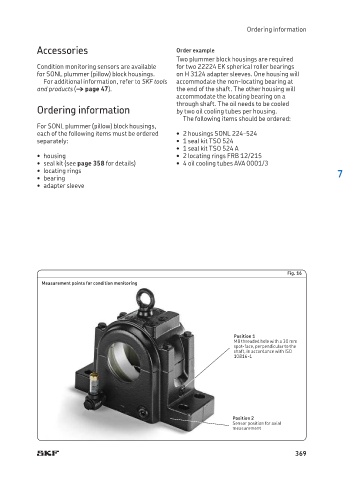

Fig. 16
Measurement points for condition monitoring

Position 1
M8 threaded hole with a 30 mm
spot-face, perpendicular to the
shaft, in accordance with ISO
10816-1

Position 2
Sensor position for axial
measurement
