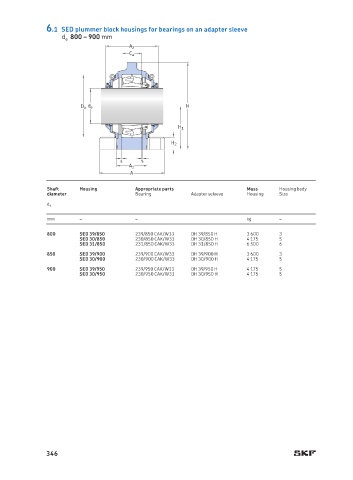

6.1 SED plummer block housings for bearings on an adapter sleeve
d a 800 – 900 mm
A 2
C a

D a d a H

H 1

H 2

s s
A 1
A

Shaft Housing Appropriate parts Mass Housing body
diameter Bearing Adapter seleeve Housing Size
d a
mm – – kg –
800 SED 39/850 239/850 CAK/W33 OH 3 9 / 8 50 H 3 600 3
SED 30/850 230/850 CAK/W33 OH 30/850 H 4 175 5
SED 31/850 231/850 CAK/W33 OH 31/850 H 6 500 6
850 SED 39/900 239/900 CAK/W33 OH 39/900 H 3 600 3
SED 30/900 230/900 CAK/W33 OH 30/900 H 4 175 5
900 SED 39/950 239/950 CAK/W33 OH 39/950 H 4 175 5
SED 30/950 230/950 CAK/W33 OH 30/950 H 4 175 5

346
