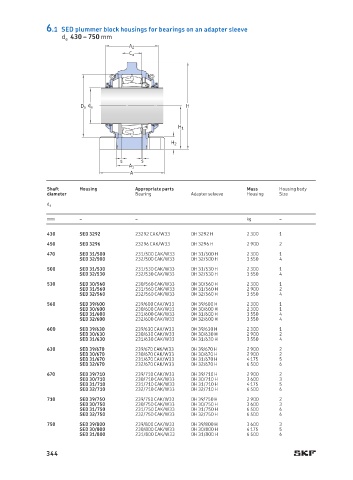

6.1 SED plummer block housings for bearings on an adapter sleeve
d a 430 – 750 mm
A 2
C a

D a d a H

H 1

H 2

s s
A 1
A

Shaft Housing Appropriate parts Mass Housing body
diameter Bearing Adapter seleeve Housing Size
d a
mm – – kg –
430 SED 3292 23292 CAK/W33 OH 3 292 H 2 300 1
450 SED 3296 23296 CAK/W33 OH 3296 H 2 900 2
470 SED 31/500 231/500 CAK/W33 OH 31/500 H 2 300 1
SED 32/500 232/500 CAK/W33 OH 32/500 H 3 550 4
500 SED 31/530 231/530 CAK/W33 OH 31/530 H 2 300 1
SED 32/530 232/530 CAK/W33 OH 32/530 H 3 550 4
530 SED 30/560 230/560 CAK/W33 OH 30/560 H 2 300 1
SED 31/560 231/560 CAK/W33 OH 31/560 H 2 900 2
SED 32/560 232/560 CAK/W33 OH 32/560 H 3 550 4
560 SED 39/600 239/600 CAK/W33 OH 39/600 H 2 300 1
SED 30/600 230/600 CAK/W33 OH 30/600 H 2 300 1
SED 31/600 231/600 CAK/W33 OH 31/600 H 3 550 4
SED 32/600 232/600 CAK/W33 OH 32/600 H 3 550 4
600 SED 39/630 239/630 CAK/W33 OH 39/630 H 2 300 1
SED 30/630 230/630 CAK/W33 OH 30/630 H 2 900 2
SED 31/630 231/630 CAK/W33 OH 31/630 H 3 550 4
630 SED 39/670 239/670 CAK/W33 OH 39/670 H 2 900 2
SED 30/670 230/670 CAK/W33 OH 30/670 H 2 900 2
SED 31/670 231/670 CAK/W33 OH 31/670 H 4 175 5
SED 32/670 232/670 CAK/W33 OH 32/670 H 6 500 6
670 SED 39/710 239/710 CAK/W33 OH 39/710 H 2 900 2
SED 30/710 230/710 CAK/W33 OH 30/710 H 3 600 3
SED 31/710 231/710 CAK/W33 OH 31/710 H 4 175 5
SED 32/710 232/710 CAK/W33 OH 32/710 H 6 500 6
710 SED 39/750 239/750 CAK/W33 OH 39/750 H 2 900 2
SED 30/750 230/750 CAK/W33 OH 30/750 H 3 600 3
SED 31/750 231/750 CAK/W33 OH 31/750 H 6 500 6
SED 32/750 232/750 CAK/W33 OH 32/750 H 6 500 6
750 SED 39/800 239/800 CAK/W33 OH 39/800 H 3 600 3
SED 30/800 230/800 CAK/W33 OH 30/800 H 4 175 5
SED 31/800 231/800 CAK/W33 OH 31/800 H 6 500 6

344
