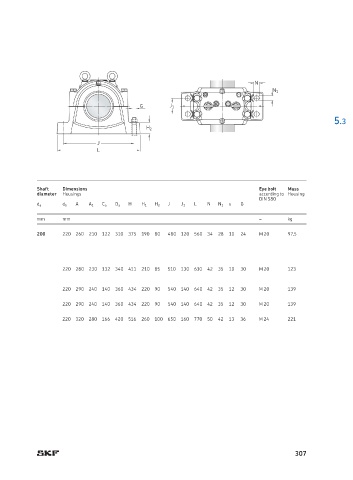

Page 311 - SKF-bearing-housings

N
N 1

G J 1
5.3
H 2

J
L

Shaft Dimensions Eye bolt Mass
diameter Housings according to Housing
DIN 580
A H J L N s G
d a d b A 1 C a D a H 1 H 2 J 1 N 1
mm mm – kg
200 220 260 210 122 310 375 190 80 480 120 560 34 28 10 24 M 20 97,5

220 280 230 132 340 411 210 85 510 130 610 42 35 10 30 M 20 123

220 290 240 140 360 434 220 90 540 140 640 42 35 12 30 M 20 139

220 290 240 140 360 434 220 90 540 140 640 42 35 12 30 M 20 139
220 320 280 166 420 516 260 100 650 160 770 50 42 13 36 M 24 221
