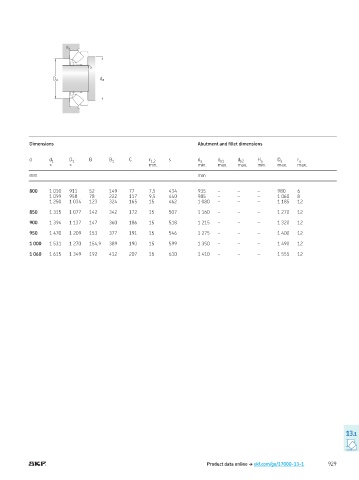

P. 931
r a
r a
D a d a
Dimensions Abutment and illet dimensions
d d 1 D 1 B B 1 C r 1,2 s d a d b1 d b2 H a D a r a
≈ ≈ min min max max min max max
mm mm
800 1 010 911 52 149 77 7,5 434 935 – – – 980 6
1 099 958 78 222 117 9,5 440 985 – – – 1 060 8
1 250 1 034 123 324 165 15 462 1 080 – – – 1 185 12
850 1 315 1 077 142 342 172 15 507 1 160 – – – 1 270 12
900 1 394 1 137 147 360 186 15 518 1 215 – – – 1 320 12
950 1 470 1 209 153 377 191 15 546 1 275 – – – 1 400 12
1 000 1 531 1 270 154,9 389 190 15 599 1 350 – – – 1 490 12
1 060 1 615 1 349 192 412 207 15 610 1 410 – – – 1 555 12
13.1
Product data online † skf.com/go/17000-13-1 929
