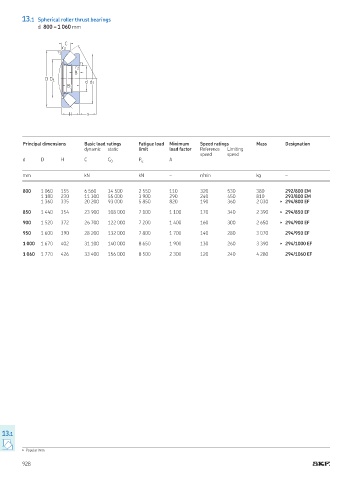

13.1 Spherical roller thrust bearings
d 800 – 1 060 mm

C
r 2
r 1
r 1
r 2
B
D D 1
d d 1
B 1

H s

Principal dimensions Basic load ratings Fatigue load Minimum Speed ratings Mass Designation
dynamic static limit load factor Reference Limiting
speed speed
d D H C C 0 P u A

mm kN kN – r/min kg –

800 1 060 155 6 560 34 500 2 550 110 320 530 380 292/800 EM
1 180 230 11 300 55 000 3 900 290 240 450 810 293/800 EM
1 360 335 20 200 93 000 5 850 820 190 360 2 030 ▶ 294/800 EF

850 1 440 354 23 900 108 000 7 100 1 100 170 340 2 390 ▶ 294/850 EF

900 1 520 372 26 700 122 000 7 200 1 400 160 300 2 650 ▶ 294/900 EF

950 1 600 390 28 200 132 000 7 800 1 700 140 280 3 070 294/950 EF

1 000 1 670 402 31 100 140 000 8 650 1 900 130 260 3 390 ▶ 294/1000 EF

1 060 1 770 426 33 400 156 000 8 500 2 300 120 240 4 280 294/1060 EF

13.1

▶ Popular item
