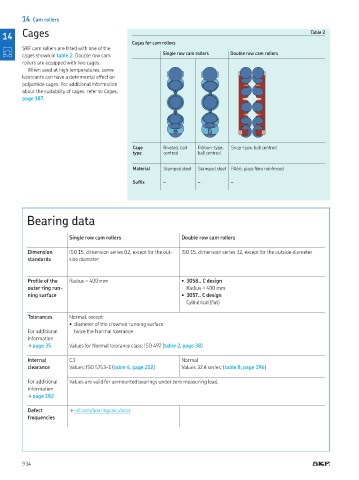

14 Cam rollers

14 Cages Table 2
Cages for cam rollers
SKF cam rollers are itted with one of the
cages shown in table 2. Double row cam Single row cam rollers Double row cam rollers
rollers are equipped with two cages.
When used at high temperatures, some
lubricants can have a detrimental effect on
polyamide cages. For additional information
about the suitability of cages, refer to Cages,
page 187.

Cage Riveted, ball Ribbon-type, Snap-type, ball centred
type centred ball centred

Material Stamped steel Stamped steel PA66, glass ibre reinforced

Sufix – – –

Bearing data

Single row cam rollers Double row cam rollers

Dimension ISO 15, dimension series 02, except for the out- ISO 15, dimension series 32, except for the outside diameter
standards side diameter

Proile of the Radius = 400 mm • 3058‥ C design
outer ring run- Radius = 400 mm
ning surface • 3057‥ C design
Cylindrical (lat)

Tolerances Normal, except:
• diameter of the crowned running surface:
For additional twice the Normal tolerance
information
† page 35 Values for Normal tolerance class: ISO 492 (table 2, page 38)

Internal C3 Normal
clearance Values: ISO 5753-1 (table 6, page 252) Values 32 A series: (table 8, page 396)

For additional Values are valid for unmounted bearings under zero measuring load.
information
† page 182

Defect † skf.com/bearingcalculator
frequencies

934
