12 Needle roller thrust bearings

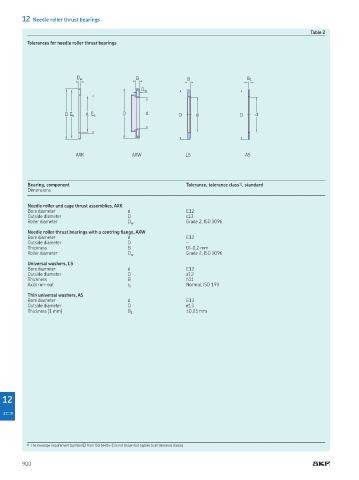

Table 2
Tolerances for needle roller thrust bearings

D w B B B 1
D w

D E b d E a D d D d D d

AXK AXW LS AS

Bearing, component Tolerance, tolerance class 1) , standard
Dimensions

Needle roller and cage thrust assemblies, AXK
Bore diameter d E12
Outside diameter D c13
Roller diameter D w Grade 2, ISO 3096

Needle roller thrust bearings with a centring lange, AXW
Bore diameter d E12
Outside diameter D –
Thickness B 0/–0,2 mm
Roller diameter D w Grade 2, ISO 3096
Universal washers, LS
Bore diameter d E12
Outside diameter D a12
Thickness B h11
Axial run-out s i Normal, ISO 199
Thin universal washers, AS
Bore diameter d E13
Outside diameter D e13
Thickness (1 mm) B 1 ±0,05 mm

12

1) The envelope requirement (symbol � from ISO 14405-1) is not shown but applies to all tolerance classes
