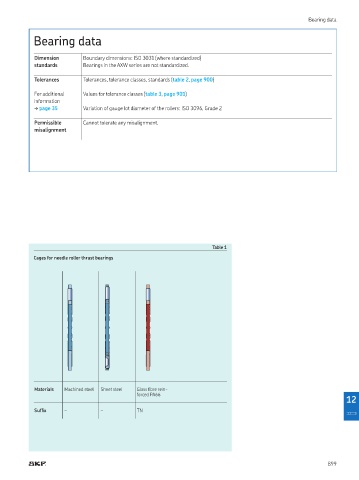

Bearing data

Bearing data

Dimension Boundary dimensions: ISO 3031 (where standardized)
standards Bearings in the AXW series are not standardized

Tolerances Tolerances, tolerance classes, standards (table 2, page 900)

For additional Values for tolerance classes (table 3, page 901)
information
† page 35 Variation of gauge lot diameter of the rollers: ISO 3096, Grade 2

Permissible Cannot tolerate any misalignment
misalignment

Table 1
Cages for needle roller thrust bearings

Materials Machined steel Sheet steel Glass ibre rein-
forced PA66
12
Sufix – – TN

899
