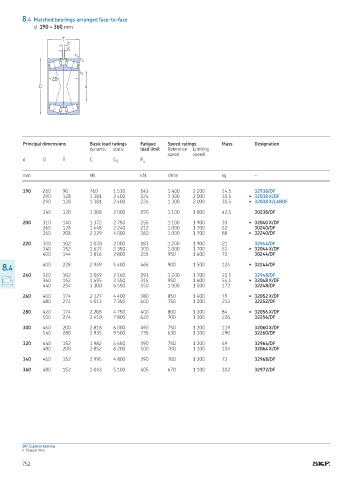

8.4 Matched bearings arranged face-to-face
d 190 – 360 mm

T
b
K
r 4
r 3

r 5
2B
D d

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation
dynamic static load limit Reference Limiting
speed speed
d D T C C 0 P u

mm kN kN r/min kg –

190 260 90 760 1 530 143 1 400 2 200 14,5 32938/DF
290 128 1 381 2 400 224 1 300 2 000 30,5 ▶ 32038 X/DF
290 128 1 381 2 400 224 1 300 2 000 30,5 ▶ 32038 X/L4BDF

340 120 1 308 2 000 190 1 100 1 800 42,5 30238/DF

200 310 140 1 372 2 750 255 1 100 1 900 39 ▶ 32040 X/DF
360 128 1 448 2 240 212 1 000 1 700 52 30240/DF
360 208 2 229 4 000 360 1 000 1 700 88 ▶ 32240/DF

220 300 102 1 030 2 000 183 1 200 1 900 21 32944/DF
340 152 1 637 3 350 300 1 000 1 700 51 ▶ 32044 X/DF
400 144 1 816 2 800 255 950 1 600 72 30244/DF

400 228 2 949 5 400 465 900 1 500 124 ▶ 32244/DF
8.4
240 320 102 1 069 2 160 193 1 200 1 700 22,5 32948/DF
360 152 1 695 3 550 315 950 1 600 54,5 ▶ 32048 X/DF
440 254 3 300 6 550 550 1 000 1 500 172 32248/DF

260 400 174 2 127 4 400 380 850 1 400 79 ▶ 32052 X/DF
480 274 4 013 7 350 600 750 1 200 213 32252/DF

280 420 174 2 208 4 750 400 800 1 300 84 ▶ 32056 X/DF
500 274 2 410 7 800 620 700 1 200 226 32256/DF

300 460 200 2 818 6 000 490 750 1 200 119 32060 X/DF
540 280 2 935 9 500 735 630 1 100 290 32260/DF

320 440 152 1 982 4 650 390 750 1 200 69 32964/DF
480 200 2 852 6 200 500 700 1 100 104 32064 X/DF

340 460 152 1 995 4 800 390 700 1 200 73 32968/DF

360 480 152 2 043 5 100 405 670 1 100 302 32972/DF

SKF Explorer bearing
▶ Popular item
