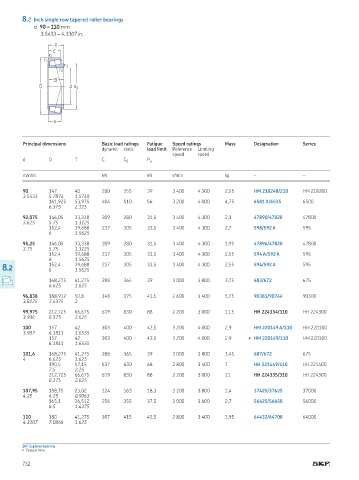

8.2 Inch single row tapered roller bearings
d 90 – 110 mm
3.5433 – 4.3307 in.

T
C
r 4
r 3
r 1
r 2
B
D d d 1

a

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation Series
dynamic static load limit Reference Limiting
speed speed
d D T C C 0 P u

mm/in. kN kN r/min kg – –

90 147 40 280 355 39 3 400 4 300 2,55 HM 218248/210 HM 218200
3.5433 5.7874 1.5748
161,925 53,975 404 510 56 3 200 4 000 4,75 6581 X/6535 6500
6.375 2.125

92,075 146,05 33,338 209 280 31,5 3 400 4 300 2,1 47890/47820 47800
3.625 5.75 1.3125
152,4 39,688 237 305 33,5 3 400 4 300 2,7 598/592 A 595
6 1.5625

95,25 146,05 33,338 209 280 31,5 3 400 4 300 1,95 47896/47820 47800
3.75 5.75 1.3125
152,4 39,688 237 305 33,5 3 400 4 300 2,55 594 A/592 A 595
6 1.5625
152,4 39,688 237 305 33,5 3 400 4 300 2,55 594/592 A 595
8.2 6 1.5625

168,275 41,275 288 365 39 3 000 3 800 3,75 683/672 675
6.625 1.625

96,838 188,912 50,8 348 375 41,5 2 600 3 400 5,75 90381/90744 90300
3.8125 7.4375 2

99,975 212,725 66,675 619 830 88 2 200 3 000 11,5 HH 224334/310 HH 224300
3.936 8.375 2.625

100 157 42 303 400 42,5 3 200 4 000 2,9 HM 220149 A/110 HM 220100
3.937 6.1811 1.6535
157 42 303 400 42,5 3 200 4 000 2,9 ▶ HM 220149/110 HM 220100
6.1811 1.6535

101,6 168,275 41,275 288 365 39 3 000 3 800 3,45 687/672 675
4 6.625 1.625
190,5 57,15 537 630 68 2 800 3 400 7 HH 221449/410 HH 221400
7.5 2.25
212,725 66,675 619 830 88 2 200 3 000 11 HH 224335/310 HH 224300
8.375 2.625

107,95 158,75 23,02 124 163 18,3 3 200 3 800 1,4 37425/37625 37000
4.25 6.25 0.9063
165,1 36,512 256 355 37,5 3 000 3 600 2,7 56425/56650 56000
6.5 1.4375

110 180 41,275 307 415 42,5 2 800 3 400 3,95 64432/64708 64000
4.3307 7.0866 1.625

SKF Explorer bearing
▶ Popular item
