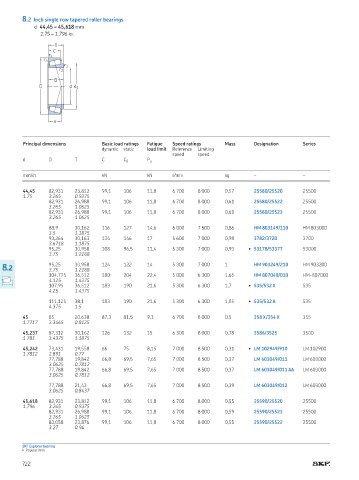

Page 724 - Rollingbearings

8.2 Inch single row tapered roller bearings
d 44,45 – 45,618 mm
1.75 – 1.796 in.

T
C
r 4
r 3
r 1
r 2
B
D d d 1

a

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation Series
dynamic static load limit Reference Limiting
speed speed
d D T C C 0 P u

mm/in. kN kN r/min kg – –

44,45 82,931 23,812 99,1 106 11,8 6 700 8 000 0,57 25580/25520 25500
1.75 3.265 0.9375
82,931 26,988 99,1 106 11,8 6 700 8 000 0,61 25580/25522 25500
3.265 1.0625
82,931 26,988 99,1 106 11,8 6 700 8 000 0,61 25580/25523 25500
3.265 1.0625

88,9 30,162 116 127 14,6 6 000 7 500 0,86 HM 803149/110 HM 803000
3.5 1.1875
93,264 30,163 134 146 17 5 600 7 000 0,98 3782/3720 3700
3.6718 1.1875
95,25 30,958 108 96,5 11,4 5 300 7 000 0,93 ▶ 53178/53377 53000
3.75 1.2188

95,25 30,958 124 122 14 5 300 7 000 1 HM 903249/210 HM 903200
8.2 3.75 1.2188
104,775 36,512 180 204 22,4 5 000 6 300 1,65 HM 807040/010 HM-807000
4.125 1.4375
107,95 36,512 183 190 21,6 5 300 6 300 1,7 ▶ 535/532 X 535
4.25 1.4375

111,125 38,1 183 190 21,6 5 300 6 300 1,85 ▶ 535/532 A 535
4.375 1.5

45 85 20,638 87,3 81,5 9,3 6 700 8 000 0,5 358 X/354 X 355
1.7717 3.3465 0.8125

45,237 87,312 30,162 126 132 15 6 300 8 000 0,78 3586/3525 3500
1.781 3.4375 1.1875

45,242 73,431 19,558 66 75 8,15 7 000 8 500 0,31 ▶ LM 102949/910 LM 102900
1.7812 2.891 0.77
77,788 19,842 66,8 69,5 7,65 7 000 8 500 0,37 LM 603049/011 LM 603000
3.0625 0.7812
77,788 19,842 66,8 69,5 7,65 7 000 8 500 0,37 LM 603049/011 AA LM 603000
3.0625 0.7812

77,788 21,43 66,8 69,5 7,65 7 000 8 500 0,39 LM 603049/012 LM 603000
3.0625 0.8437

45,618 82,931 23,812 99,1 106 11,8 6 700 8 000 0,55 25590/25520 25500
1.796 3.265 0.9375
82,931 26,988 99,1 106 11,8 6 700 8 000 0,59 25590/25523 25500
3.265 1.0625
83,058 23,876 99,1 106 11,8 6 700 8 000 0,55 25590/25522 25500
3.27 0.94

SKF Explorer bearing
▶ Popular item
