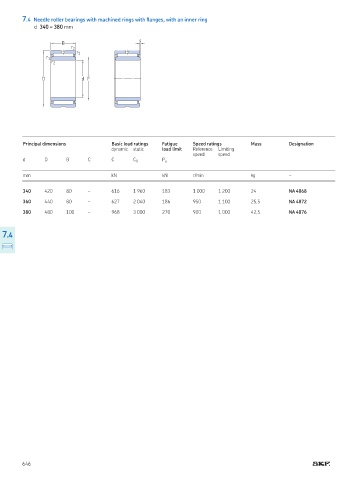

7.4 Needle roller bearings with machined rings with langes, with an inner ring
d 340 – 380 mm

s
B
r 2
r 1
r 1
r 2

D d F

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation
dynamic static load limit Reference Limiting
speed speed
d D B C C C 0 P u

mm kN kN r/min kg –

340 420 80 – 616 1 960 183 1 000 1 200 24 NA 4868

360 440 80 – 627 2 040 186 950 1 100 25,5 NA 4872

380 480 100 – 968 3 000 270 900 1 000 42,5 NA 4876

7.4

646
