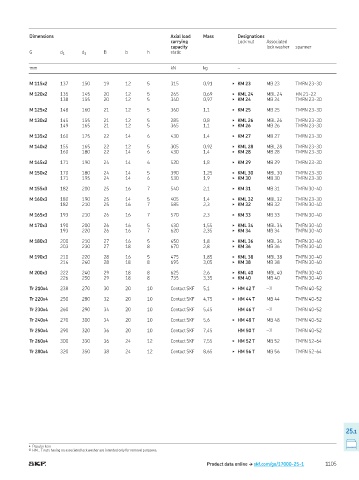

Page 1107 - Rollingbearings

Dimensions Axial load Mass Designations
carrying Lock nut Associated
capacity lock washer spanner
G d 1 d 3 B b h static

mm kN kg –

M 115x2 137 150 19 12 5 315 0,91 ▶ KM 23 MB 23 TMFN 23-30

M 120x2 135 145 20 12 5 265 0,69 ▶ KML 24 MBL 24 HN 21-22
138 155 20 12 5 340 0,97 ▶ KM 24 MB 24 TMFN 23-30

M 125x2 148 160 21 12 5 360 1,1 ▶ KM 25 MB 25 TMFN 23-30

M 130x2 145 155 21 12 5 285 0,8 ▶ KML 26 MBL 26 TMFN 23-30
149 165 21 12 5 365 1,1 ▶ KM 26 MB 26 TMFN 23-30

M 135x2 160 175 22 14 6 430 1,4 ▶ KM 27 MB 27 TMFN 23-30

M 140x2 155 165 22 12 5 305 0,92 ▶ KML 28 MBL 28 TMFN 23-30
160 180 22 14 6 430 1,4 ▶ KM 28 MB 28 TMFN 23-30

M 145x2 171 190 24 14 6 520 1,8 ▶ KM 29 MB 29 TMFN 23-30

M 150x2 170 180 24 14 5 390 1,25 ▶ KML 30 MBL 30 TMFN 23-30
171 195 24 14 6 530 1,9 ▶ KM 30 MB 30 TMFN 23-30

M 155x3 182 200 25 16 7 540 2,1 ▶ KM 31 MB 31 TMFN 30-40

M 160x3 180 190 25 14 5 405 1,4 ▶ KML 32 MBL 32 TMFN 23-30
182 210 25 16 7 585 2,3 ▶ KM 32 MB 32 TMFN 30-40

M 165x3 193 210 26 16 7 570 2,3 ▶ KM 33 MB 33 TMFN 30-40

M 170x3 190 200 26 16 5 430 1,55 ▶ KML 34 MBL 34 TMFN 30-40
193 220 26 16 7 620 2,35 ▶ KM 34 MB 34 TMFN 30-40

M 180x3 200 210 27 16 5 450 1,8 ▶ KML 36 MBL 36 TMFN 30-40
203 230 27 18 8 670 2,8 ▶ KM 36 MB 36 TMFN 30-40

M 190x3 210 220 28 16 5 475 1,85 ▶ KML 38 MBL 38 TMFN 30-40
214 240 28 18 8 695 3,05 ▶ KM 38 MB 38 TMFN 30-40

M 200x3 222 240 29 18 8 625 2,6 ▶ KML 40 MBL 40 TMFN 30-40
226 250 29 18 8 735 3,35 ▶ KM 40 MB 40 TMFN 30-40

Tr 210x4 238 270 30 20 10 Contact SKF 5,1 ▶ HM 42 T – 1) TMFN 40-52

Tr 220x4 250 280 32 20 10 Contact SKF 4,75 ▶ HM 44 T MB 44 TMFN 40-52

Tr 230x4 260 290 34 20 10 Contact SKF 5,45 HM 46 T – 1) TMFN 40-52

Tr 240x4 270 300 34 20 10 Contact SKF 5,6 ▶ HM 48 T MB 48 TMFN 40-52

Tr 250x4 290 320 36 20 10 Contact SKF 7,45 HM 50 T – 1) TMFN 40-52

Tr 260x4 300 330 36 24 12 Contact SKF 7,55 ▶ HM 52 T MB 52 TMFN 52-64

Tr 280x4 320 350 38 24 12 Contact SKF 8,65 ▶ HM 56 T MB 56 TMFN 52-64

25.1

▶ Popular item
1) HM T nuts having no associated lock washer are intended only for removal purposes

Product data online † skf.com/go/17000-25-1 1105
