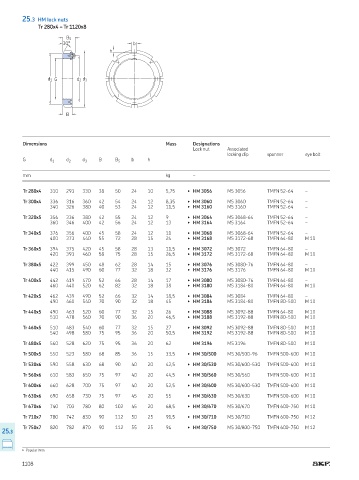

Page 1110 - Rollingbearings

25.3 HM lock nuts
Tr 280x4 – Tr 1120x8

B 5
30° b
h

d 1 G d 2 d 3

B

Dimensions Mass Designations
Lock nut Associated
locking clip spanner eye bolt
G d 1 d 2 d 3 B B 5 b h

mm kg –

Tr 280x4 310 293 330 38 50 24 10 5,75 ▶ HM 3056 MS 3056 TMFN 52-64 –

Tr 300x4 336 316 360 42 54 24 12 8,35 ▶ HM 3060 MS 3060 TMFN 52-64 –
340 326 380 40 53 24 12 11,5 ▶ HM 3160 MS 3160 TMFN 52-64 –

Tr 320x5 356 336 380 42 55 24 12 9 ▶ HM 3064 MS 3068-64 TMFN 52-64 –
360 346 400 42 56 24 12 13 ▶ HM 3164 MS 3164 TMFN 52-64 –

Tr 340x5 376 356 400 45 58 24 12 11 ▶ HM 3068 MS 3068-64 TMFN 52-64 –
400 373 440 55 72 28 15 24 ▶ HM 3168 MS 3172-68 TMFN 64-80 M 10

Tr 360x5 394 375 420 45 58 28 13 11,5 ▶ HM 3072 MS 3072 TMFN 64-80 –
420 393 460 58 75 28 15 26,5 ▶ HM 3172 MS 3172-68 TMFN 64-80 M 10

Tr 380x5 422 399 450 48 62 28 14 15 ▶ HM 3076 MS 3080-76 TMFN 64-80 –
440 415 490 60 77 32 18 32 ▶ HM 3176 MS 3176 TMFN 64-80 M 10

Tr 400x5 442 419 470 52 66 28 14 17 ▶ HM 3080 MS 3080-76 TMFN 64-80 –
460 440 520 62 82 32 18 38 ▶ HM 3180 MS 3184-80 TMFN 64-80 M 10

Tr 420x5 462 439 490 52 66 32 14 18,5 ▶ HM 3084 MS 3084 TMFN 64-80 –
490 460 540 70 90 32 18 45 ▶ HM 3184 MS 3184-80 TMFN 80-500 M 10

Tr 440x5 490 463 520 60 77 32 15 26 ▶ HM 3088 MS 3092-88 TMFN 64-80 M 10
510 478 560 70 90 36 20 46,5 ▶ HM 3188 MS 3192-88 TMFN 80-500 M 10

Tr 460x5 510 483 540 60 77 32 15 27 ▶ HM 3092 MS 3092-88 TMFN 80-500 M 10
540 498 580 75 95 36 20 50,5 HM 3192 MS 3192-88 TMFN 80-500 M 10

Tr 480x5 560 528 620 75 95 36 20 62 HM 3196 MS 3196 TMFN 80-500 M 10

Tr 500x5 550 523 580 68 85 36 15 33,5 ▶ HM 30/500 MS 30/500-96 TMFN 500-600 M 10

Tr 530x6 590 558 630 68 90 40 20 42,5 ▶ HM 30/530 MS 30/600-530 TMFN 500-600 M 10

Tr 560x6 610 583 650 75 97 40 20 44,5 ▶ HM 30/560 MS 30/560 TMFN 500-600 M 10

Tr 600x6 660 628 700 75 97 40 20 52,5 ▶ HM 30/600 MS 30/600-530 TMFN 500-600 M 10

Tr 630x6 690 658 730 75 97 45 20 55 ▶ HM 30/630 MS 30/630 TMFN 500-600 M 10

Tr 670x6 740 703 780 80 102 45 20 68,5 ▶ HM 30/670 MS 30/670 TMFN 600-750 M 10

Tr 710x7 780 742 830 90 112 50 25 91,5 ▶ HM 30/710 MS 30/710 TMFN 600-750 M 12

Tr 750x7 820 782 870 90 112 55 25 94 ▶ HM 30/750 MS 30/800-750 TMFN 600-750 M 12
25.3

▶ Popular item
