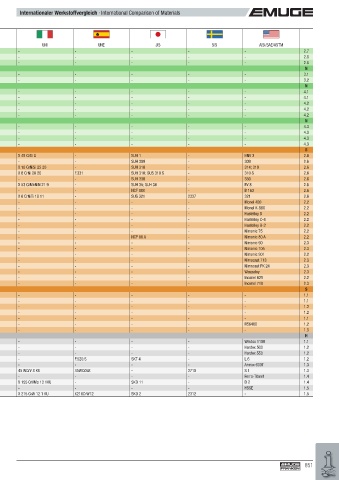

Internationaler Werkstoffvergleich · International Comparison of Materials

R m Rockwell
[N/mm 2 ] [HRC]
Mat.-Nr. DIN AFNOR BS EN UNI UNE JIS SIS AISI/SAE/ASTM
2.7 > 500 AMPCO ® 25 - - - - - - - - - 2.7
2.8 > 810 AMPCO ® 45 - - - - - - - - - 2.8
2.8 > 1000 AMPCO ® M-4 - - - - - - - - - 2.8
N Magnesium-Knetlegierungen · Magnesium wrought alloys N
3.1 > 270 3.5612 MgAl6Zn - - - - - - - - 3.1
3.2 > 240 3.5912 G-MgAl9Zn1 - - - - - - - - 3.2
N Kunststoffe · Synthetics N
4.1 Bakelit - - - - - - - - - 4.1
4.1 Pertinax - - - - - - - - - 4.1
4.2 PMMA - - - - - - - - - 4.2
4.2 POM - - - - - - - - - 4.2
4.2 PVC - - - - - - - - - 4.2
N Faserverstärkte Kunststoffe · Fibre-reinforced synthetics N
4.3 155 - 365 GFK - - - - - - - - - 4.3
4.3 190 - 210 CFK uni. - - - - - - - - - 4.3
4.3 190 - 210 CFK milti. - - - - - - - - - 4.3
4.3 AFK - - - - - - - - - 4.3
S Nickel-, Kobalt- und Eisen-Legierungen · Nickel alloys, cobalt alloys and iron alloys S
2.6 900 - 1100 1.4718 X45CrSi9-3 Z 45 CS 9 401 S 45 52 X 45 CrSi 8 - SUH 1 - HNV 3 2.6
2.6 500 - 750 1.4828 X15CrNiSi20-12 Z 15 CNS 20.12 309 S 24 - - - SUH 309 - 309 2.6
2.6 550 - 800 1.4841 X15CrNiSi25-20 Z 15 CNS 25.20 - - X 16 CrNiSi 25 20 - SUH 310 - 314; 310 2.6
2.6 500 - 750 1.4845 X12CrNi25-21 Z 12 CN 25.20 310 S 24 - X 6 CrNi 26 20 F.331 SUH 310; SUS 310 S - 310 S 2.6
2.6 550 - 800 1.4864 X12NiCrSi36-16 Z 12 NCS 37.18 NA 17 - - - SUH 330 - 330 2.6
2.6 950 - 1200 1.4871 X53CrMnNiN21-9 Z 52 CMN 21.09 349 S 54 - X 53 CrMnNiN 21 9 - SUH 35; SUH 36 - EV 8 2.6
2.6 500 - 750 1.4876 X10NiCrAlTi33-20 Z 8 NC 32.21 NA 15 (H) - - - NCF 800 - B 163 2.6
2.6 500 - 750 1.4878 X12CrNiTi18-9 Z 6 CNT 18.12 (B) 321 S 20 - X 6 CrNiTi 18 11 - SUS 321 2337 321 2.6
2.2 500 - 700 2.4360 NiCu30Fe Nu 30 NA 13 - - - - - Monel 400 2.2
2.2 620 - 850 2.4375 NiCu30Al Nu 30 AT NA 18 - - - - - Monel K-500 2.2
2.2 > 690 2.4685 G-NiMo28 - - - - - - - Hastelloy B 2.2
2.2 > 740 2.4610 NiMo16Cr16Ti - - - - - - - Hastelloy C-4 2.2
2.2 > 760 2.4617 G-NiMo30 - - - - - - - Hastelloy B-2 2.2
2.2 700 - 800 2.4630, 2.4951 NiCr20Ti NC 20 T HR 5 - - - - - Nimonic 75 2.2
2.2 800 - 1000 2.4631 NiCr20TiAl - HR 401; 601 - - - NCF 80 A - Nimonic 80 A 2.2
2.3 1200 2.4632 NiCr20Co18Ti - - - - - - - Nimonic 90 2.3
2.3 1180 2.4634 NiCo20Cr15MoAlTi - - - - - - - Nimonic 105 2.3
2.2 < 770 2.4662 NiCr13Mo6Ti3 - HR 53 - - - - - Nimonic 901 2.2
2.3 900 - 1200 2.4670 - - - - - - - - Nimocast 713 2.3
2.3 900 - 1200 2.4674 - - - - - - - - Nimocast PK 24 2.3
2.3 1270 2.6554 - - - - - - - - Waspaloy 2.3
2.2 890 2.4856 NiCr22Mo9Nb NC 22 FeDNb NA 21 - - - - - Inconel 625 2.2
2.3 < 1400 2.4668 NiCr19FeNbMo NC 19Fe Nb - - - - - Inconel 718 2.3
S Reintitan, Titanlegierungen · Pure titanium, titanium alloys S
1.1 290 - 410 3.7025 Ti99.5 / Ti Gr.1 - - - - - - - - 1.1
1.1 380 - 540 3.7035 Ti99.4 / Ti Gr.2 - TA 1 - - - - - - 1.1
1.2 460 - 590 3.7055 Ti99.3 / Ti Gr.3 - TA 2 - - - - - - 1.2
1.2 540 - 740 3.7065 Ti99.2 / Ti Gr.4 - TA 3 - - - - - - 1.2
1.1 390 - 540 3.7235 Ti2Pd / Ti Gr.2Pd - - - - - - - - 1.1
1.2 > 890 3.7165 TiAl6V4 / Ti Gr. 5 T-A6V TA 28 - - - - - R56400 1.2
1.3 > 1000 3.7185 TiAl4Mo4Sn2 - - - - - - - - 1.3
H Gehärtete Stähle, Hartguss · Hardened steels, hard castings H
1.1 1250 - 1550 < 50 Weldox 1100 - - - - - - - - Weldox 1100 1.1
1.2 1600 - 1800 < 55 Hardox 500 - - - - - - - - Hardox 500 1.2
1.2 1820 - 1900 < 55 Hardox 550 - - - - - - - - Hardox 550 1.2
1.2 ~ 1860 < 55 1.2713 55NiCrMoV6 55 NCDV 7 - - - F.520.S SKT 4 - L 6 1.2
1.3 1995 - 2300 < 60 Armox 600T - - - - - - - - Armox 600T 1.3
1.3 ~ 2100 < 60 1.2542 45WCrV7 - BS 1 - 45 WCrV 8 KU 45WCrSi8 - 2710 S 1 1.3
1.4 < 63 Ferro-Titanit - - - - - - - - Ferro-Titanit 1.4
1.4 < 63 1.2379 X155CrVMo12-1 Z 160 CDV 12 BD 2 - X 155 CrVMo 12 1KU - SKD 11 - D 2 1.4
1.5 < 66 HSSE - - - - - - - - HSSE 1.5
1.5 < 66 1.2436 X210CrW12 - - - X 215 CrW 12 1 KU X210CrW12 SKD 2 2312 - 1.5

851
