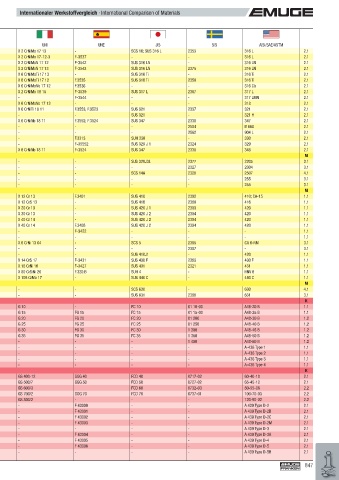

Internationaler Werkstoffvergleich · International Comparison of Materials

R m Rockwell
[N/mm 2 ] [HRC]
Mat.-Nr. DIN AFNOR BS EN UNI UNE JIS SIS AISI/SAE/ASTM
2.1 520 - 700 1.4435 X2CrNiMo18-14-3 Z 2 CND 17.13 317 S 12 - X 2 CrNiMo 17 13 - SCS 16; SUS 316 L 2353 316 L 2.1
2.1 520 - 700 1.4432 X2CrNiMo17-12-3 Z 3 CND 17-02-03 316 S 13 - X 2 CrNiMo 17-12-3 F-3537 - - 316 L 2.1
2.1 580 - 780 1.4406 X2CrNiMoN17-12-2 Z 2 CND 17.12 AZ 316 S 61 58C X 2 CrNiMoN 17 12 F-3542 SUS 316 LN - 316 LN 2.1
2.1 580 - 780 1.4429 X2CrNiMoN17-13-3 Z 2 CND 17.13 AZ 316 S 62 - X 2 CrNiMoN 17 13 F-3543 SUS 316 LN 2375 316 LN 2.1
2.1 490 - 740 1.4573 X10CrNiMoTi-18-12 - 320 S 33 - X 6 CrNiMoTi 17 13 - SUS 316 Ti - 316 Ti 2.1
2.1 520 - 690 1.4571 X6CrNiMoTi17-12-2 Z 6 CNT 17.12 320 S 31 58J X 6 CrNiMoTi 17 12 F.3535 SUS 316 Ti 2350 316 Ti 2.1
2.1 520 - 720 1.4580 X6CrNiMoNb17-12-2 Z 6 CNDNb 17.12 318 S 17 - X 6 CrNiMoNb 17 12 F.3536 - - 316 Cb 2.1
2.1 550 - 700 1.4438 X2CrNiMo18-16-4 Z 2 CND 19.15 317 S 12 - X 2 CrNiMo 18 15 F-3539 SUS 317 L 2367 317 L 2.1
2.1 580 - 780 1.4439 X2CrNiMoN17-13-5 Z 3 CND 18-14-05 Az - - - F-3544 - - 317 LMN 2.1
2.1 490 - 740 1.4583 X10CrNiMoNb18-12 - - - X 6 CrNiMoNb 17 13 - - - 318 2.1
2.1 500 - 720 1.4541 X6CrNiTi18-10 Z 6 CNT 18.10 321 S 12 58B X 6 CrNiTi 18 11 F.3553; F.3523 SUS 321 2337 321 2.1
2.1 500 - 720 1.4878 X8CrNiTi18-10 Z 6 CNT 18-10 321 S 31 - - - SUS 321 - 321 H 2.1
2.1 500 - 720 1.4550 X6CrNiNb18-10 Z 6 CNNb 18.10 347 S 17 58F X 6 CrNiNb 18 11 F.3552; F.3524 SUS 347 2338 347 2.1
2.1 500 - 700 1.4563 X1NiCrMoCu31-27-4 Z 2 NCDU 31-27 - - - - - 2584 B 668 2.1
2.1 520 - 730 1.4539 X1NiCrMoCu25-20-5 Z 2 NCDU 25-20 904 S 13 - - - - 2562 904 L 2.1
2.1 550 - 750 1.4864 X12NiCrSi35-16 Z 20 NCS 33-16 NA 17 - - F.3313 SUH 330 - 330 2.1
2.1 620 - 880 1.4460 X8CrNiMo27-5 Z 5 CND 27-05 - - - F-35552 SUS 329 J 1 2324 329 2.1
2.1 500 - 740 1.4546 X5CrNiNb18-10 Z 6 CNNb 18.10 347 S 18 58F X 6 CrNiNb 18 11 F-3524 SUS 347 2338 348 2.1
M Rost- und säurebeständige Stähle – Duplex · Corrosion and acid proof steels – Duplex M
3.1 340 - 950 1.4462 X2CrNiMoN22-5-3 Z 3 CND 22-05 Az 318 S 13 - - - SUS 329J3L 2377 2205 3.1
3.1 630 - 850 1.4362 X2CrNiN23-4 Z 3 CN 23-04 Az - - - - - 2327 2304 3.1
4.1 730 - 1250 1.4410 X2CrNiMoN25-7-4 Z 3 CND 25-06 - - - - SCS 14A 2328 2507 4.1
3.1 730 - 1000 1.4507 X2CrNiMoCuN25-6-3 Z 3 CNDU 25-06 - - - - - - 255 3.1
3.1 730 - 1000 1.4507 X2CrNiMoCuN25-6-3 Z 3 CNDU 25-06 - - - - - - 255 3.1
M Rost- und säurebeständige Stähle – martensitisch · Corrosion and acid proof steels – martensitic M
1.1 > 600 1.4006 X10Cr13 Z 12 C 13 410 S 21 56A X 12 Cr 13 F.3401 SUS 410 2302 410; CA-15 1.1
1.1 650 - 850 1.4005 X12CrS13 Z 12 CF 13 416 S 21 - X 12 CrS 13 - SUS 416 2380 416 1.1
1.1 > 700 1.4021 X20Cr13 Z 20 C 13 420 S 37 - X 20 Cr 13 - SUS 420 J 1 2303 420 1.1
1.1 > 740 1.4028 X30Cr13 Z 30 C 13 420 S 45 - X 30 Cr 13 - SUS 420 J 2 2304 420 1.1
1.1 > 760 1.4031 X38Cr13 Z 40 C 14 - X 40 Cr 14 - SUS 420 J 2 2304 420 1.1
1.1 > 780 1.4034 X46Cr13 Z 40 CM 420 S 45 56D X 40 Cr 14 F.3405 SUS 420 J 2 2304 420 1.1
1.1 > 850 1.4116 X50CrMoV15 Z 50 CD 15 - - - F-3422 - - - 1.1
1.1 > 900 1.4122 X39CrMo17-1 Z 38 CD 16-01 - - - - - - - 1.1
3.1 780 - 980 1.4313 X5CrNi134 Z 5 CN 13.4 425 C 11 - X 6 CrNi 13 04 - SCS 5 2385 CA 6-NM 3.1
3.1 840 - 1000 1.4418 X4CrNiMo6-5-1 Z 6 CND 16-05-01 - - - - - 2387 - 3.1
1.1 > 650 1.4024 X15Cr13 Z 12 C 13 M 420 S 29 56B - - SUS 410J1 - 420 1.1
1.1 640 - 840 1.4104 X14CrMoS17 Z 13 CF 17 - - X 14 CrS 17 F-3431 SUS 430 F 2383 430 F 1.1
1.1 750 - 950 1.4057 X17CrNi162 Z 15 CN 16.02 431 S 29 57 X 16 CrNi 16 F-3427 SUS 431 2321 431 1.1
1.1 1.4747 X80CrNiSi20 Z 80 CSN 20.02 443 S 65 59 X 80 CrSiNi 20 F.320.B SUH 4 - HNV 6 1.1
1.1 < 900 1.4125 X105CrMo17 Z 100 CD 17 - - X 105 CrMo 17 - SUS 440 C - 440 C 1.1
M Rost- und säurebeständige Stähle – ausscheidungshärtend · Corrosion and acid proof steels – precipitation-hardened M
4.1 > 1275 1.4542 X5CrNiCuNb16-4 Z 7 CNU 15-05 - - - - SCS 630 - 630 4.1
3.1 > 1030 1.4568 X7CrNiAl17-7 Z 9 CNA 17-07 301 S 81 - - - SUS 631 2388 631 3.1
K Gusseisen mit Lamellengrafi t (GJL) · Cast iron with lamellar graphite (GJL) K
1.1 100 - 200 0.6010 EN-GJL100 (GG10) Ft 10 D - - G 10 - FC 10 01 10-00 A48-20 B 1.1
1.1 150 - 250 0.6015 EN-GJL150 (GG15) Ft 15 D Grade 150 - G 15 FG 15 FC 15 01 15-00 A48-25 B 1.1
1.2 200 - 300 0.6020 EN-GJL200 (GG20) Ft 20 D Grade 220 - G 20 FG 20 FC 20 01 200 A48-30 B 1.2
1.2 250 - 350 0.6025 EN-GJL250 (GG25) Ft 25 D Grade 260 - G 25 FG 25 FC 25 01 250 A48-40 B 1.2
1.2 300 - 400 0.6030 EN-GJL300 (GG30) Ft 30 D Grade 300 - G 30 FG 30 FC 30 1 300 A48-45 B 1.2
1.2 350 - 450 0.6035 EN-GJL350 (GG35) Ft 35 D Grade 350 - G 35 FG 35 FC 35 1 350 A48-50 B 1.2
1.2 400 - 500 0.6040 EN-GJLZ (GG40) Ft 40 D Grade 400 - - - - 1 400 A48-60 B 1.2
1.1 > 170 0.6655 GGL-NiCuCr15-6-2 L-NUC 15 6 2 L-NUC 15 6 2 - - - - - A-436 Type 1 1.1
1.1 > 170 0.6660 GGL-NiCr20-2 L-NC 20 2 L-NC 20 2 - - - - - A-436 Type 2 1.1
1.1 > 190 0.6676 GGL-NiCr30-3 L-NC 30 3 L-NC 30 3 - - - - - A-436 Type 3 1.1
1.1 > 170 0.6680 GGL-NiSiCr30-5-5 L-NSC 30 5 5 L-NSC 30 5 5 - - - - - A-436 Type 4 1.1
K Gusseisen mit Kugelgrafi t (GJS) · Cast iron with nodular graphite (GJS) K
2.1 370 - 400 0.7040 EN-GJS-400-15 (GGG40) FGS 400-12 SNG 420/12 - GS 400-12 GGG 40 FCD 40 0717-02 60-40-18 2.1
2.1 420 - 500 0.7050 EN-GJS-500-7 (GGG50) FGS 500-7 SNG 500/7 - GS 500/7 GGG 50 FCD 50 0727-02 65-45-12 2.1
2.2 550 - 600 0.7060 EN-GJS-600-3 (GGG60) FGS 600-3 SNG 600/3 - GS 600/3 FCD 60 0732-03 80-55-06 2.2
2.2 660 - 700 0.7070 EN-GJS-700-2 (GGG70) FGS 700-2 SNG 700/2 - GS 700/2 GGG 70 FCD 70 0737-01 100-70-03 2.2
2.2 800 0.7080 EN-GJS-800-2 (GGG80) FGS 800-2 SNG 800/2 - GS 800/2 - - - 120-90-02 2.2
2.1 370 - 480 0.7660 GGG-NiCr20-2 S-NC 20 2 S-NiCr 20 2 - - F 43000 - - A 439 Type D-2 2.1
2.1 > 390 0.7661 GGG-NiCr20-3 S-NC 20 3 S-NiCr 20 3 - - F 43001 - - A 439 Type D-2B 2.1
2.1 370 - 450 0.7670 EN-GJSA-XNi22 S-N 22 S-Ni 22 - - F 43002 - - A 439 Type D-2C 2.1
2.1 440 - 480 0.7673 EN-GJSA-XNiMn23-4 S-NM 23 4 S-NiMn 23 4 - - F 43003 - - A 439 Type D-2M 2.1
2.1 370 - 480 0.7676 EN-GJSA-XNiCr30-3 S-NC 30 3 S-NiCr 30 3 - - - - - A 439 Type D-3 2.1
2.1 > 370 0.7677 GGG-NiCr301 S-NC 30 1 S-NiCr 30 1 - - F 43004 - - A 439 Type D-3A 2.1
2.1 390 - 500 0.7680 EN-GJSA-XNiSiCr30-5-5 S-NSC 30 5 5 S-NiSiCr 30 5 5 - - F 43005 - - A 439 Type D-4 2.1
2.1 370 - 420 0.7683 EN-GJSA-XNi35 S-N 35 S-Ni 35 - - F 43006 - - A 439 Type D-5 2.1
2.1 370 - 450 0.7685 EN-GJSA-XNiCr35-3 S-NC 35 3 S-NiCr 35 3 - - - - - A 439 Type D-5B 2.1
