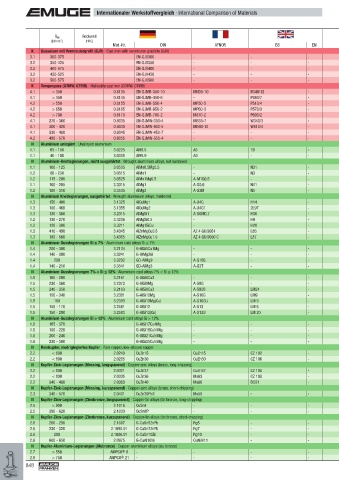

Internationaler Werkstoffvergleich · International Comparison of Materials

R m Rockwell
[N/mm 2 ] [HRC]
Mat.-Nr. DIN AFNOR BS EN UNI UNE JIS SIS AISI/SAE/ASTM
K Gusseisen mit Vermiculargrafi t (GJV) · Cast iron with vermicular graphite (GJV) K
3.1 300-375 EN-GJV300 - - - - - - - - 3.1
3.2 350-425 EN-GJV350 - - - - - - - - 3.2
3.2 400-475 EN-GJV400 - - - - - - - - 3.2
3.2 450-525 EN-GJV450 - - - - - - - - 3.2
3.2 500-575 EN-GJV500 - - - - - - - - 3.2
K Temperguss (GTMW, GTMB) · Malleable cast iron (GTMW, GTMB) K
4.1 > 350 0.8135 EN-GJMB-350-10 MN35-10 B340/12 - - GTS 35 - 0810 32510 4.1
4.1 > 450 0.8145 EN-GJMB-450-6 - P440/7 - - GTS 45 - 0852 40010 4.1
4.2 > 550 0.8155 EN-GJMB-550-4 MP50-5 P510/4 - - GTS 55 - 0854 50005 4.2
4.2 > 650 0.8165 EN-GJMB-650-2 MP60-3 P570/3 - - GTS 65 - 0856 70003 4.2
4.2 > 700 0.8170 EN-GJMB-700-2 M870-2 P690/2 - - GTS 70 - 0862; 0864 90001 4.2
4.1 270 - 360 0.8035 EN-GJMW-350-4 MB35-7 W340/3 - - GTW 35 FCMW 330 - MB 350-4 4.1
4.1 300 - 420 0.8040 EN-GJMW-400-5 MB40-10 W410/4 - GMB 40 GTW 40 FCMW 370 - MB 400-5 4.1
4.1 330 - 480 0.8045 EN-GJMW-450-7 - - - GMB 45 GTW 45 FCMWP 440 - MB 450-7 4.1
4.2 490 - 570 0.8055 EN-GJMW-550-4 - - - - GTW 55 - - - 4.2
N Aluminium unlegiert · Unalloyed aluminium N
1.1 65 - 150 3.0225 Al99.5 A5 1B - 4507 L-3051 A1x1 - - 1.1
1.1 40 - 100 3.0305 Al99.9 A9 - - - - - - - 1.1
N Aluminium-Knetlegierungen, nicht ausgehärtet · Wrought aluminium alloys, not hardened N
1.1 100 - 125 3.0505 AlMn0.5Mg0.5 - N31 - - - - - 3105 1.1
1.2 80 - 230 3.0515 AlMn1 - N3 - 3568 L-3810 144054 - - 1.2
1.2 115 - 290 3.0525 AlMn1Mg0.5 A-M1G0,5 - - - - - - - 1.2
1.1 100 - 205 3.3315 AlMg1 A-G0,6 N41 - 5764 L-3350 A2x8 144106 - 1.1
1.2 180 - 310 3.3535 AlMg3 A-G3M N5 - 3575 L-3390 - - - 1.2
N Aluminium Knetlegierungen, ausgehärtet · Wrought aluminium alloys, hardened N
1.3 150 - 400 3.1325 AlCuMg1 A-U4G H14 - 3579 L-3120 - - - 1.3
1.3 180 - 460 3.1355 AlCuMg2 A-U4G1 2L97 - 3579 L-3140 A3x4 - - 1.3
1.3 130 - 360 3.2315 AlMgSi1 A-SGM0,7 H30 - 3571 L-3451 - 144212 - 1.3
1.2 130 - 270 3.3206 AlMgSi0.5 - H9 - 3569 L-3441 A2x5 144103 - 1.2
1.2 120 - 300 3.3211 AlMg1SiCu - H20 - - - - - - 1.2
1.3 410 - 490 3.4345 AlZnMgCu0.5 AZ 4 GU/9051 L86 - 811-04 - - - 7050 1.3
1.3 180 - 560 3.4365 AlZnMgCu1.5 AZ 4 GU/9050 C L87 - 811-05 - - - 7175 1.3
N Aluminium-Gusslegierungen Si ≤ 7% · Aluminium cast alloys Si ≤ 7% N
1.4 280 - 300 3.2134 G-AlSi5Cu1Mg - - - - - - - - 1.4
1.4 140 - 300 3.3241 G-AlMg3Si - - - - - - - - 1.4
1.4 200 3.3292 GD-AlMg9 A-G10S - - 5080 - - - - 1.4
1.4 140 - 210 3.3541 GD-AlMg3 A-G3T - - 3059 - ADC6 - - 1.4
N Aluminium-Gusslegierungen 7% < Si ≤ 12% · Aluminium cast alloys 7% < Si ≤ 12% N
1.5 160 - 200 3.2161 G-AlSi8Cu3 - - - - - - - - 1.5
1.5 230 - 360 3.2373 G-AlSi9Mg A-S9G - - 3051 - AC4A - - 1.5
1.5 240 - 350 3.2163 G-AlSi9Cu3 A-S9U3 LM24 - 5075 - - - - 1.5
1.5 150 - 340 3.2381 G-AlSi10Mg A-S10G LM9 - 3051 L-2560 - 4253 - 1.5
1.5 160 3.2383 G-AlSi10Mg(Cu) A-S10GU LM 9 - - - - 4253 A 360.2 1.5
1.5 150 - 170 3.2581 G-AlSi12 A-S13 LM 6 - 3051 - AC3 4261 A 413.2 1.5
1.5 150 - 290 3.2583 G-AlSi12(Cu) A-S12U LM 20 - 3048 - - 4260 A 413.1 1.5
N Aluminium-Gusslegierungen Si > 12% · Aluminium cast alloys Si > 12% N
1.6 165 - 370 G-AlSi17Cu4Mg - - - - - - - - 1.6
1.6 180 - 220 G-AlSi18CuNiMg - - - - - - - - 1.6
1.6 200 - 240 G-AlSi21CuNiMg - - - - - - - - 1.6
1.6 230 - 300 G-AlSi25CuNiMg - - - - - - - - 1.6
N Reinkupfer, niedriglegiertes Kupfer · Pure copper, low-alloyed copper N
2.2 < 600 2.0240 CuZn15 CuZn15 CZ 102 - - - C2300 - C23000 2.2
2.2 < 800 2.0265 CuZn30 CuZn30 CZ 106 - - - C2600 - C26000 2.2
N Kupfer-Zink-Legierungen (Messing, langspanend) · Copper-zinc alloys (brass, long-chipping) N
2.2 < 800 2.0321 CuZn37 CuZn37 CZ 108 - - - C 2700 - C27200 2.2
2.2 < 800 2.0335 CuZn36 Ms63 CZ 108 - P-CuZn35 - C 2700 - C27000 2.2
2.2 340 - 480 2.0360 CuZn40 Ms60 DCB1 - - - - - C28000 2.2
N Kupfer-Zink-Legierungen (Messing, kurzspanend) · Copper-zinc alloys (brass, short-chipping) N
2.3 340 - 570 2.0401 CuZn39Pb3 Ms58 - - - - - - C38500 2.3
N Kupfer-Zinn-Legierungen (Zinnbronze, langspanend) · Copper-tin alloys (tin bronze, long-chipping) N
2.5 < 900 2.1016 CuSn4 - - - - - C 5111 - C51100 2.5
2.5 390 - 620 2.1030 CuSn8P - - - - - C5210 - C52100 2.5
N Kupfer-Zinn-Legierungen (Zinnbronze, kurzspanend) · Copper-tin alloys (tin bronze, short-chipping) N
2.6 200 - 250 2.1097 G-CuSn5ZnPb Rg5 - - - - H 5111 - C83600 2.6
2.6 230 - 320 2.1090.01 G-CuSn7ZnPb Rg7 - - - - - - C93200 2.6
2.6 280 2.1086.01 G-CuSn10Zn Rg10 - - - - - - - 2.6
2.6 600 - 650 2.0975 G-CuAl10Ni CuNiAl11 - - - - - - - 2.6
N Kupfer-Aluminium-Legierungen (Alubronze) · Copper-aluminium alloys (alu bronze) N
2.7 > 550 AMPCO ® 8 - - - - - - - - - 2.7
2.8 > 750 AMPCO ® 21 - - - - - - - - - 2.8
848
