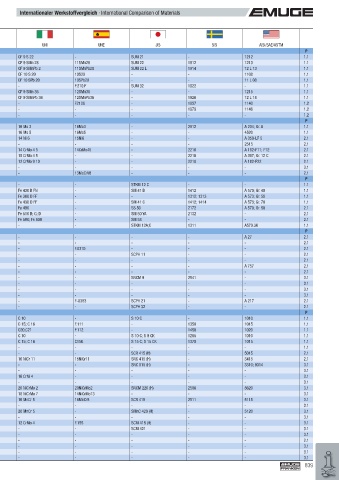

Internationaler Werkstoffvergleich · International Comparison of Materials

R m Rockwell
[N/mm 2 ] [HRC]
Mat.-Nr. DIN AFNOR BS EN UNI UNE JIS SIS AISI/SAE/ASTM
P Automatenstähle · Free-cutting steels P
1.1 > 500 1.0711 9S20 - 220 M 07 - CF 9 S 22 - SUM 21 - 1212 1.1
1.1 380 - 570 1.0715 9SMn28 S 250 230 M 07 - CF 9 SMn 28 11SMn28 SUM 22 1912 1213 1.1
1.1 380 - 570 1.0718 9SMnPb28 S 250 Pb - - CF 9 SMnPb 2 11SMnPb28 SUM 22 L 1914 12 L 13 1.1
1.1 360 - 530 1.0721 10S20 10 F 1 210 M 15 - CF 10 S 20 10S20 - - 1108 1.1
1.1 360 - 530 1.0722 10SPb20 10 PbF 2 - - CF 10 SPb 20 10SPb20 - - 11 L 08 1.1
1.1 380 - 570 1.0723 15S20 - 210 A 15 - - F.210.F SUM 32 1922 - 1.1
1.1 390 - 590 1.0736 9SMn36 S 300 240 M 07 1B CF 9 SMn 36 12SMn36 - - 1215 1.1
1.1 390 - 580 1.0737 9SMnPb36 S 300 Pb - - CF 9 SMnPb 36 12SMnPb36 - 1926 12 L 14 1.1
1.2 580 - 730 1.0726 35S20 35 MF 4 212 M 36 8M - F210G - 1957 1140 1.2
1.2 660 - 800 1.0727 45S20 45 MF 4 212 M 44 - - - - 1973 1146 1.2
1.2 740 - 880 1.0728 60S20 60 MF 4 - - - - - - 1.2
P Baustähle legiert · Alloyed construction steels P
1.1 440 - 590 1.5415 15Mo3 15 D 3 1501-240 - 16 Mo 3 16Mo3 - 2912 A 204; Gr. A 1.1
1.1 450 - 590 1.5423 16Mo5 - 1503-245-420 - 16 Mo 5 16Mo5 - - 4520 1.1
2.1 490 - 640 1.5622 14Ni6 16 N 6 - - 14 Ni 6 15Ni6 - - A 350-LF 5 2.1
2.1 530 - 710 1.5680 12Ni19 Z 18 N 5 - - - - - - 2515 2.1
2.1 450 - 660 1.7335 13CrMo4-4 15 CD 3.5 1501-620 Gr. 27 - 14 CrMo 4 5 14CrMo45 - 2216 A 182-F11; F12 2.1
2.1 540 - 690 1.7337 16CrMo4-4 15 CD 4.5 1501-620 Gr. 27 - 15 CrMo 4 5 - - 2216 A 387; Gr. 12 C 2.1
2.1 480 - 630 1.7380 10CrMo9-10 10 CD 9.10 1501-622 Gr. 31; 45 - 12 CrMo 9 10 - - 2218 A 182-F22 2.1
3.1 700 - 850 1.7709 21CrMoV5-7 - - - - - - - - 3.1
2.1 490 - 640 1.7715 14MoV6-3 14 Mo 6 1503-660-440 - - 13MoCrV6 - - - 2.1
P Baustähle unlegiert / Unalloyed construction steels P
1.1 > 500 1.0037 St37-2 - - - - - STKM 12 C - - 1.1
1.1 410 - 560 1.0044 St44-2 E 28-2 4360-43 B - Fe 430 B FN - SM 41 B 1412 A 570; Gr. 40 1.1
1.1 340 - 470 1.0116 St37-3 E 24-3; E 24-4 4360-40 C - Fe 360 D FF - - 1312; 1313 A 573; Gr. 58 1.1
1.1 410 - 560 1.0144 St44-3 E 28-3; E 28-4 4360-43 C - Fe 430 D FF - SM 41 C 1412; 1414 A 573; Gr. 70 1.1
2.1 470 - 610 1.0050 St50-2 A 50-2 4360-50 B - Fe 490 - SS 50 2172 A 570; Gr. 50 2.1
2.1 490 - 630 1.0570 St52-3 E 36-3; E 36-4 4360-50 B - Fe 510 B; C; D - SM 50 YA 2132 - 2.1
2.1 570 - 710 1.0060 St60-2 A 60-2 4360-SSE; SS - Fe 590; Fe 600 - SM 58 - - 2.1
1.1 340 - 470 1.0038 RSt37-2 E24-2 Ne 4360 40C 1A - - STKM 12A;C 1311 A570.36 1.1
P Stahlguss · Steel castings P
2.1 > 380 1.0420 GS-38 - AM 1 - - - - - A 27 2.1
2.1 700 - 800 1.1118 GS-24Mn6 - - - - - - - - 2.1
2.1 480 - 620 1.1120 GS-20Mn5 - - - - F.8310 - - - 2.1
2.1 > 500 1.5419 GS-22Mo4 - 245 - - - SCPH 11 - - 2.1
2.1 > 500 1.5633 GS-24Ni8 - - - - - - - - 2.1
2.1 > 500 1.5681 GS-10Ni19 - - - - - - - A 757 2.1
2.1 > 500 1.6309 GS-20MnMoNi5-5 - - - - - - - - 2.1
3.1 < 850 1.6582 GS-34CrNiMo6 - - 24 - - SNCM 9 2541 - 3.1
3.1 > 800 1.6748 GS-40NiCrMo6-5-6 - - - - - - - - 3.1
3.1 > 800 1.6750 GS-20NiCrMo3-7 - - - - - - - - 3.1
3.1 > 800 1.6760 GS-22NiMoCr5-6 - - - - - - - - 3.1
2.1 490 - 640 1.7357 GS-17CrMo5-5 - 621 - - F-8383 SCPH 21 - A 217 2.1
2.1 > 500 1.7379 GS-18CrMo9-10 - 622 - - - SCPH 32 - - 2.1
P Einsatzstähle / Case-hardend steels P
1.1 < 500 1.0301 C10 AF 34 C 10; XC 10 045 M 10 - C 10 - S 10 C - 1010 1.1
1.1 < 500 1.0401 C15 AF 34 C 12; XC 18 080 M 15 - C 15; C 16 F.111 - 1350 1015 1.1
1.1 < 500 1.0402 C22 CC20 050 A 20 2C C20;C21 F.112 - 1450 1020 1.1
1.1 < 500 1.1121 CK10 XC 10 045 M 10 - C 10 - S 10 C; S 9 CK 1265 1010 1.1
1.1 < 500 1.1141 CK15 XC 15; XC 18 080 M 15 32C C 15; C 16 C15K S 15 C; S 15 CK 1370 1015 1.1
1.1 < 500 1.7012 13Cr2 - - - - - - - - 1.1
2.1 500 - 700 1.7015 15Cr3 12 C 3 523 M 15 - - - SCR 415 (H) - 5015 2.1
2.1 500 - 700 1.5732 14NiCr10 14 NC 11 - - 16 NiCr 11 15NiCr11 SNC 415 (H) - 3415 2.1
3.1 700 - 850 < 24 1.5752 14NiCr14 12 NC 15 655 M 13 36A - - SNC 815 (H) - 3310; 9314 3.1
3.1 700 - 850 < 24 1.5860 14NiCr18 - - - - - - - - 3.1
3.1 700 - 850 < 24 1.5919 15CrNi6 16 NC 6 S 107 - 16 CrNi 4 - - - - 3.1
3.1 700 - 850 < 24 1.5920 18NiCr8 20 NC 6 - - - - - - - 3.1
3.1 700 - 850 < 24 1.6523 21NiCrMo2 20 NCD 2 805 M 20 362 20 NiCrMo 2 20NiCrMo2 SNCM 220 (H) 2506 8620 3.1
3.1 700 - 850 < 24 1.6587 17CrNiMo6 18 NCD 6 820 A 16 - 18 NiCrMo 7 14NiCrMo13 - - - 3.1
3.1 700 - 850 < 24 1.7131 16MnCr5 16 MC 5 527 M 17 - 16 MnCr 5 16MnCr5 SCR 415 2511 5115 3.1
3.1 700 - 850 < 24 1.7139 16MnCrS5 - - - - - - - - 3.1
3.1 700 - 850 < 24 1.7147 20MnCr5 20 MC 5 - - 20 MnCr 5 - SMnC 420 (H) - 5120 3.1
3.1 700 - 850 < 24 1.7149 20MnCrS5 - - - - - - - - 3.1
3.1 700 - 850 < 24 1.7262 15CrMo5 12 CD 4 - - 12 CrMo 4 F.155 SCM 415 (H) - - 3.1
3.1 700 - 850 < 24 1.7264 20CrMo5 18 CD 4 - - - - SCM 421 - - 3.1
3.1 700 - 850 < 24 1.7271 23CrMoB3-3 - - - - - - - - 3.1
2.1 500 - 700 < 24 1.7311 20CrMo2 - - - - - - - - 2.1
3.1 700 - 850 < 24 1.7321 20MoCr4 - - - - - - - - 3.1
3.1 700 - 850 < 24 1.7323 20MoCrS4 - - - - - - - - 3.1
3.1 700 - 850 < 24 1.7325 25MoCr4 - - - - - - - - 3.1
839
