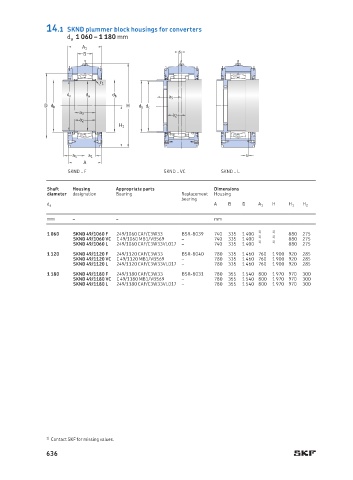

14.1 SKND plummer block housings for converters
d a 1 060 – 1 180 mm

A 1
s
B

r 1
d c d a d b
a 5
D d b H d b d c
a 3
a 2
a 2
H 1

s
a 5 a 1
A
SKND .. F SKND .. VC SKND .. L

Shaft Housing Appropriate parts Dimensions
diam eter designation Bearing Replacement Housing
bearing
A B D H
d a A 1 H 1 H 2
mm – – mm
1) 1)
1 060 SKND 49/1060 F 249/1060 CAF/C3W33 BSR-8039 740 335 1 400 880 275
SKND 49/1060 VC C 49/1060 MB1/VB569 – 740 335 1 400 1) 1) 880 275
SKND 49/1060 L 249/1060 CAF/C3W33VL017 – 740 335 1 400 1) 1) 880 275
1 120 SKND 49/1120 F 249/1120 CAF/C3W33 BSR-8040 780 335 1 460 760 1 900 920 285
SKND 49/1120 VC C 49/1120 MB1/VB569 – 780 335 1 460 760 1 900 920 285
SKND 49/1120 L 249/1120 CAF/C3W33VL017 – 780 335 1 460 760 1 900 920 285
1 180 SKND 49/1180 F 249/1180 CAF/C3W33 BSR-8031 780 355 1 540 800 1 970 970 300
SKND 49/1180 VC C 49/1180 MB1/VB569 – 780 355 1 540 800 1 970 970 300
SKND 49/1180 L 249/1180 CAF/C3W33VL017 – 780 355 1 540 800 1 970 970 300

1) Contact SKF for missing values.
