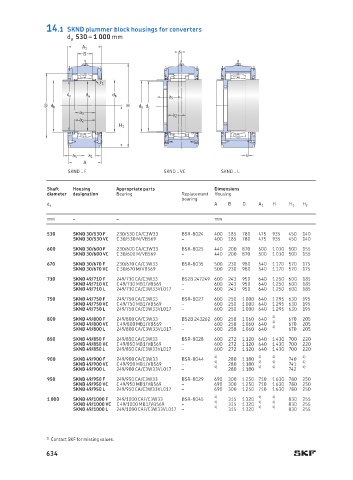

14.1 SKND plummer block housings for converters
d a 530 – 1 000 mm

A 1
s
B

r 1
d c d a d b
a 5
D d b H d b d c
a 3
a 2
a 2
H 1

a 5 a 1 s
A
SKND .. F SKND .. VC SKND .. L

Shaft Housing Appropriate parts Dimensions
diam eter designation Bearing Replacement Housing
bearing
A B D H
d a A 1 H 1 H 2
mm – – mm
530 SKND 30/530 F 230/530 CA/C3W33 BSR-8024 400 185 780 475 935 450 140
SKND 30/530 VC C 30/530 M/VB569 – 400 185 780 475 935 450 140
600 SKND 30/600 F 230/600 CA/C3W33 BSR-8025 440 200 870 500 1 030 500 155
SKND 30/600 VC C 30/600 M/VB569 – 440 200 870 500 1 030 500 155
670 SKND 30/670 F 230/670 CA/C3W33 BSR-8035 500 230 980 540 1 170 570 175
SKND 30/670 VC C 30/670 M/VB569 – 500 230 980 540 1 170 570 175
710 SKND 49/710 F 249/710 CA/C3W33 BS2B 247249 600 243 950 640 1 250 600 185
SKND 49/710 VC C 49/710 MB1/VB569 – 600 243 950 640 1 250 600 185
SKND 49/710 L 249/710 CA/C3W33VL017 – 600 243 950 640 1 250 600 185
750 SKND 49/750 F 249/750 CA/C3W33 BSR-8027 600 250 1 000 640 1 295 630 195
SKND 49/750 VC C 49/750 MB1/VB569 – 600 250 1 000 640 1 295 630 195
SKND 49/750 L 249/750 CA/C3W33VL017 – 600 250 1 000 640 1 295 630 195
1)
800 SKND 49/800 F 249/800 CA/C3W33 BS2B 243262 600 258 1 060 640 670 205
SKND 49/800 VC C 49/800 MB1/VB569 – 600 258 1 060 640 1) 670 205
SKND 49/800 L 249/800 CA/C3W33VL017 – 600 258 1 060 640 1) 670 205
850 SKND 49/850 F 249/850 CA/C3W33 BSR-8028 600 272 1 120 640 1 430 700 220
SKND 49/850 VC C 49/850 MB1/VB569 – 600 272 1 120 640 1 430 700 220
SKND 49/850 L 249/850 CA/C3W33VL017 – 600 272 1 120 640 1 430 700 220
900 SKND 49/900 F 249/900 CA/C3W33 BSR-8044 1) 280 1 180 1) 1) 740 1)
SKND 49/900 VC C 49/900 MB1/VB569 – 1) 280 1 180 1) 1) 741 1)
SKND 49/900 L 249/900 CA/C3W33VL017 – 1) 280 1 180 1) 1) 742 1)
950 SKND 49/950 F 249/950 CA/C3W33 BSR-8029 690 300 1 250 710 1 630 780 250
SKND 49/950 VC C 49/950 MB1/VB569 – 690 300 1 250 710 1 630 780 250
SKND 49/950 L 249/950 CA/C3W33VL017 – 690 300 1 250 710 1 630 780 250
1 000 SKND 49/1000 F 249/1000 CAF/C3W33 BSR-8045 1) 315 1 320 1) 1) 830 255
SKND 49/1000 VC C 49/1000 MB1/VB569 – 1) 315 1 320 1) 1) 830 255
SKND 49/1000 L 249/1000 CAF/C3W33VL017 – 1) 315 1 320 1) 1) 830 255

1) Contact SKF for missing values.
