Split plummer block housings for steel converters, SKND series

Mounting Accessories

SKND housings must be mounted and aligned Axial position measuring system
properly, applying special knowledge and For SKND converter housings an axial position
using the correct tools. SKF can provide measuring system is available. The system
detailed mounting instructions, assist during measures and reports the position of the trun-
mounting or provide a complete installation nion end at the non-locating bearing position.
service. For additional information, contact It consists of a radially split reflector ring
the SKF application engineering service. mounted on the trunnion end, two ultrasonic
sensors for redundant measurements, a sen-
sor fixture and protected and shielded cabling
Axial support for the housing († fig. 10).
Stops should be placed against the pads on the
ends and sides of the base. These stops should
be sufficiently strong to accommodate operat-
ing loads acting parallel to the support surface.

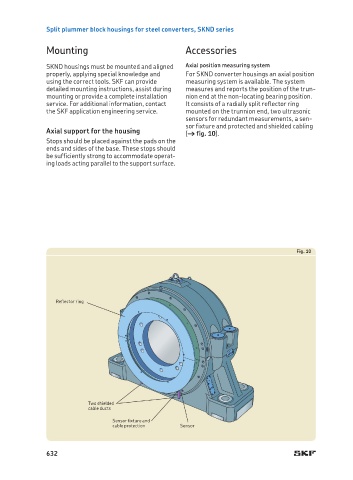

Fig. 10
