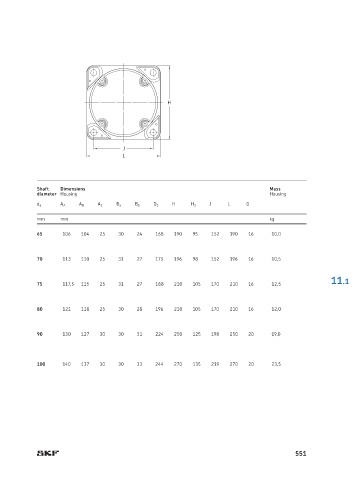

P. 555
H
J
L
Shaft Dimensions Mass
diameter Housing Housing
H J L G
d a A A A B A 1 B a B b D 1 H 1
mm mm kg
65 106 104 25 30 24 168 190 95 152 190 16 10,0
70 113 110 25 31 27 175 196 98 152 196 16 10,5
11.1
75 117,5 115 25 31 27 188 210 105 170 210 16 12,5
80 121 118 25 30 28 196 210 105 170 210 16 12,0
90 130 127 30 30 31 224 250 125 198 250 20 19,0
100 140 137 30 30 33 244 270 135 219 270 20 23,5
551
