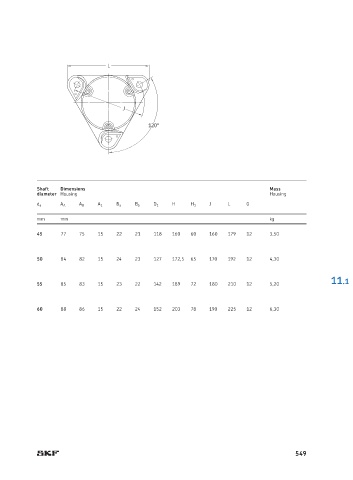

P. 553
L
J
120°
Shaft Dimensions Mass
diameter Housing Housing
H J L G
d a A A A B A 1 B a B b D 1 H 1
mm mm kg
45 77 75 15 22 21 118 160 60 160 179 12 3,50
50 84 82 15 24 23 127 172,5 65 170 192 12 4,30
55 85 83 15 23 22 142 189 72 180 210 12 5,20 11.1
60 88 86 15 22 24 152 203 78 190 225 12 6,30
549
