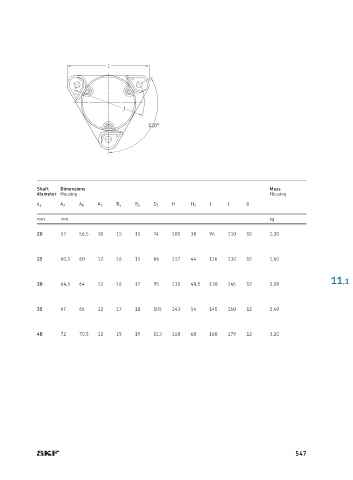

Page 551 - SKF-bearing-housings
P. 551
L
J
120°
Shaft Dimensions Mass
diameter Housing Housing
H J L G
d a A A A B A 1 B a B b D 1 H 1
mm mm kg
20 57 56,5 10 15 15 74 100 38 96 110 10 1,10
25 60,5 60 12 16 15 86 117 44 116 130 10 1,60
30 64,5 64 12 16 17 95 130 48,5 130 145 12 2,00 11.1
35 67 66 12 17 18 105 143 54 140 160 12 2,40
40 72 70,5 12 19 19 113 160 60 160 179 12 3,20
