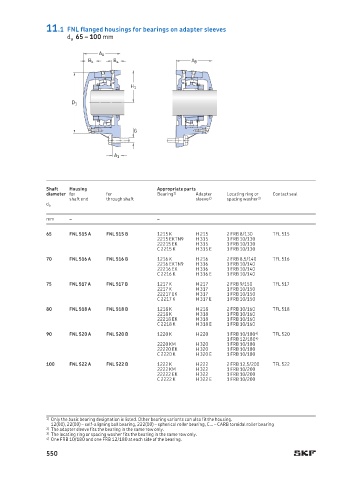

11.1 FNL flanged housings for bearings on adapter sleeves
d a 65 – 100 mm

A A
B b B a A B

H 1
D 1

G

A 1

Shaft Housing Appropriate parts
diameter for for Bearing 1) Adapter Locating ring or Contact seal
shaft end through shaft sleeve 2) spacing washer 3)
d a
mm – –
65 FNL 515 A FNL 515 B 1215 K H 215 2 FRB 8/130 TFL 515
2215 EKTN9 H 315 1 FRB 10/130
22215 EK H 315 1 FRB 10/130
C 2215 K H 315 E 1 FRB 10/130
70 FNL 516 A FNL 516 B 1216 K H 216 2 FRB 8,5/140 TFL 516
2216 EKTN9 H 316 1 FRB 10/140
22216 EK H 316 1 FRB 10/140
C 2216 K H 316 E 1 FRB 10/140
75 FNL 517 A FNL 517 B 1217 K H 217 2 FRB 9/150 TFL 517
2217 K H 317 1 FRB 10/150
22217 EK H 317 1 FRB 10/150
C 2217 K H 317 E 1 FRB 10/150
80 FNL 518 A FNL 518 B 1218 K H 218 2 FRB 10/160 TFL 518
2218 K H 318 1 FRB 10/160
22218 EK H 318 1 FRB 10/160
C 2218 K H 318 E 1 FRB 10/160
90 FNL 520 A FNL 520 B 1220 K H 220 1 FRB 10/180 4) TFL 520
1 FRB 12/180 4)
2220 KM H 320 1 FRB 10/180
22220 EK H 320 1 FRB 10/180
C 2220 K H 320 E 1 FRB 10/180
100 FNL 522 A FNL 522 B 1222 K H 222 2 FRB 12,5/200 TFL 522
2222 KM H 322 1 FRB 10/200
22222 EK H 322 1 FRB 10/200
C 2222 K H 322 E 1 FRB 10/200

1) Only the basic bearing designation is listed. Other bearing variants can also fit the housing.
12(00), 22(00) – self-aligning ball bearing, 222(00) – spherical roller bearing, C… – CARB toroidal roller bearing
2) The adapter sleeve fits the bearing in the same row only.
3) The locating ring or spacing washer fits the bearing in the same row only.
4) One FRB 10/180 and one FRB 12/180 at each side of the bearing.
