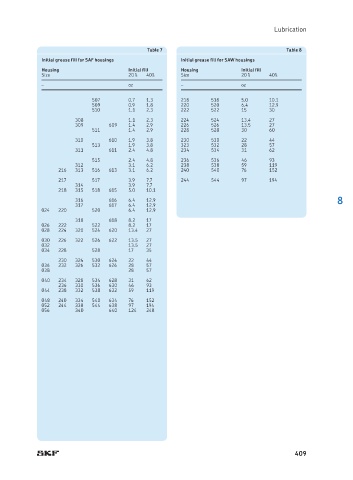

Page 413 - SKF-bearing-housings

Lubrication

Table 7 Table 8
Initial grease fill for SAF housings Initial grease fill for SAW housings
Housing Initial fill Housing Initial fill
Size 20 % 40% Size 20 % 40%
– oz – oz

507 0.7 1.3 218 518 5.0 10.1
509 0.9 1.8 220 520 6.4 12.9
510 1.1 2.3 222 522 15 30
308 1.1 2.3 224 524 13.4 27
309 609 1.4 2.9 226 526 13.5 27
511 1.4 2.9 228 528 30 60
310 610 1.9 3.8 230 530 22 44
513 1.9 3.8 323 532 28 57
311 611 2.4 4.8 234 534 31 62
515 2.4 4.8 236 536 46 93
312 3.1 6.2 238 538 59 119
216 313 516 613 3.1 6.2 240 540 76 152
217 517 3.9 7.7 244 544 97 194
314 3.9 7.7
218 315 518 615 5.0 10.1
316 616 6.4 12.9 8
317 617 6.4 12.9
024 220 520 6.4 12.9
318 618 8.2 17
026 222 522 8.2 17
028 224 320 524 620 13.4 27
030 226 322 526 622 13.5 27
032 13.5 27
034 228 528 17 35
230 324 530 624 22 44
036 232 326 532 626 28 57
038 28 57
040 234 328 534 628 31 62
236 330 536 630 46 93
044 238 332 538 632 59 119
048 240 334 540 634 76 152
052 244 338 544 638 97 194
056 340 640 124 248
