Split pillow blocks SAF and SAW series

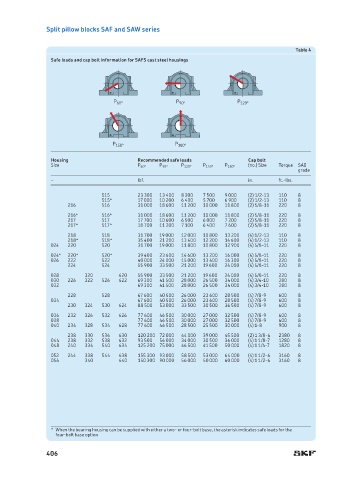

Table 4
Safe loads and cap bolt information for SAFS cast steel housings

P 60° P 90° P 120°

P 150° P 180°

Housing Recommended safe loads Cap bolt
Size P 60° P 90° P 120° P 150° P 180° (no.) Size Torque SAE
grade
– lbf. in. ft.-lbs.
515 23 300 13 400 8 300 7 500 9 000 (2) 1/2-13 110 8
515* 17 000 10 200 6 400 5 700 6 900 (2) 1/2-13 110 8
216 516 31 000 18 600 11 200 10 000 11 800 (2) 5/8-11 220 8
216* 516* 31 000 18 600 11 200 10 000 11 800 (2) 5/8-11 220 8
217 517 17 700 10 600 6 500 6 000 7 200 (2) 5/8-11 220 8
217* 517* 18 700 11 200 7 100 6 400 7 600 (2) 5/8-11 220 8
218 518 31 700 19 000 12 000 10 800 13 200 (4) 1/2-13 110 8
218* 518* 35 400 21 200 13 400 12 200 14 600 (4) 1/2-13 110 8
024 220 520 31 700 19 000 11 800 10 800 12 900 (4) 5/8-11 220 8
024* 220* 520* 39 400 23 600 14 600 13 200 16 000 (4) 5/8-11 220 8
026 222 522 40 000 24 000 15 000 13 400 16 300 (4) 5/8-11 220 8
224 524 55 900 33 500 21 200 19 600 24 000 (4) 5/8-11 220 8
028 320 620 55 900 33 500 21 200 19 600 24 000 (4) 5/8-11 220 8
030 226 322 526 622 69 300 41 500 28 000 26 500 34 000 (4) 3/4-10 380 8
032 69 300 41 500 28 000 26 500 34 000 (4) 3/4-10 380 8
228 528 67 600 40 500 26 000 23 600 28 500 (4) 7/8-9 600 8
034 67 600 40 500 26 000 23 600 28 500 (4) 7/8-9 600 8
230 324 530 624 88 500 53 000 33 500 30 500 36 500 (4) 7/8-9 600 8
036 232 326 532 626 77 600 46 500 30 000 27 000 32 500 (4) 7/8-9 600 8
038 77 600 46 500 30 000 27 000 32 500 (4) 7/8-9 600 8
040 234 328 534 628 77 600 46 500 28 500 25 500 30 000 (4) 1-8 900 8
238 330 536 630 120 200 72 000 44 000 39 000 45 500 (2) 1 3/8-6 2380 8
044 238 332 538 632 93 500 56 000 34 000 30 500 36 000 (4) 1 1/8-7 1280 8
048 240 334 540 634 125 200 75 000 46 500 41 500 50 000 (4) 1 1/4-7 1820 8
052 244 338 544 638 155 300 93 000 58 500 53 000 64 000 (4) 1 1/2-6 3160 8
056 340 640 150 300 90 000 56 000 50 000 60 000 (4) 1 1/2-6 3160 8

* When the bearing housing can be supplied with either a two- or four-bolt base, the asterisk indicates safe loads for the
four-bolt base option
