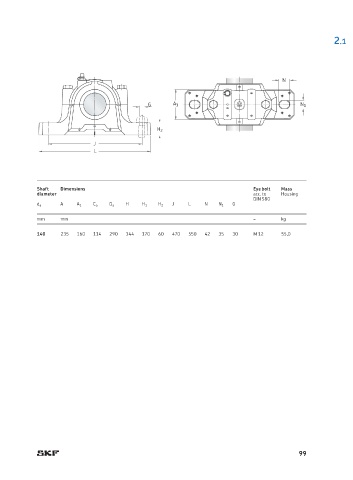

Page 103 - SKF-bearing-housings

2.1

N

G A 1 N 1

H 2
J
L

Shaft Dimensions Eye bolt Mass
diameter acc. to Housing
DIN 580
A H J L N G
d a A 1 C a D a H 1 H 2 N 1
mm mm – kg
140 235 160 114 290 344 170 60 470 550 42 35 30 M 12 55,0

99
