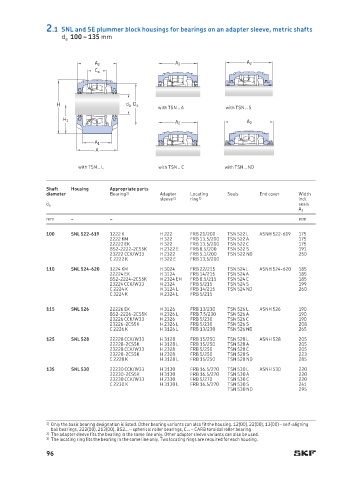

2.1 SNL and SE plummer block housings for bearings on an adapter sleeve, metric shafts
d a 100 – 135 mm

A 2 A 2 A 2
C a

H d a D a
with TSN .. A with TSN .. S
H 1
A 2 A 2

A 1
A

with TSN .. L with TSN .. C with TSN .. ND

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End cover Width
sleeve 2) ring 3) incl.
seals
d a
A 2
mm – – mm
100 SNL 522-619 1222 K H 222 FRB 21/200 TSN 522 L ASNH 522-619 175
2222 KM H 322 FRB 13.5/200 TSN 522 A 175
22222 EK H 322 FRB 13.5/200 TSN 522 C 175
BS2-2222-2CS5K H 2322 E FRB 8.5/200 TSN 522 S 191
23222 CCK/W33 H 2322 FRB 5.1/200 TSN 522 ND 250
C 2222 K H 322 E FRB 13.5/200
110 SNL 524-620 1224 KM H 3024 FRB 22/215 TSN 524 L ASNH 524-620 185
22224 EK H 3124 FRB 14/215 TSN 524 A 185
BS2-2224-2CS5K H 2324 EH FRB 8.5/215 TSN 524 C 185
23224 CCK/W33 H 2324 FRB 5/215 TSN 524 S 199
C 2224 K H 3124 L FRB 14/215 TSN 524 ND 260
C 3224 K H 2324 L FRB 5/215
115 SNL 526 22226 EK H 3126 FRB 13/230 TSN 526 L ASNH 526 190
BS2-2226-2CS5K H 2326 L FRB 7.5/230 TSN 526 A 190
23226 CCK/W33 H 2326 FRB 5/230 TSN 526 C 190
23226-2CS5K H 2326 L FRB 5/230 TSN 526 S 208
C 2226 K H 3126 L FRB 13/230 TSN 526 ND 265
125 SNL 528 22228 CCK/W33 H 3128 FRB 15/250 TSN 528 L ASNH 528 205
22228-2CS5K H 3128 L FRB 15/250 TSN 528 A 205
23228 CCK/W33 H 2328 FRB 5/250 TSN 528 C 205
23228-2CS5K H 2328 FRB 5/250 TSN 528 S 223
C 2228 K H 3128 L FRB 15/250 TSN 528 ND 285
135 SNL 530 22230 CCK/W33 H 3130 FRB 16.5/270 TSN 530 L ASNH 530 220
22230-2CS5K H 3130 FRB 16.5/270 TSN 530 A 220
23230 CCK/W33 H 2330 FRB 5/270 TSN 530 C 220
C 2230 K H 3130 L FRB 16.5/270 TSN 530 S 241
TSN 530 ND 295

1) Only the basic bearing designation is listed. Other bearing variants can also fit the housing. 12(00), 22(00), 13(00) – self-aligning
ball bearings, 222(00), 213(00), BS2… – spherical roller bearings, C… – CARB toroidal roller bearing
2) The adapter sleeve fits the bearing in the same line only. Other adapter sleeve variants can also be used.
3) The locating ring fits the bearing in the same line only. Two locating rings are required for each housing.
