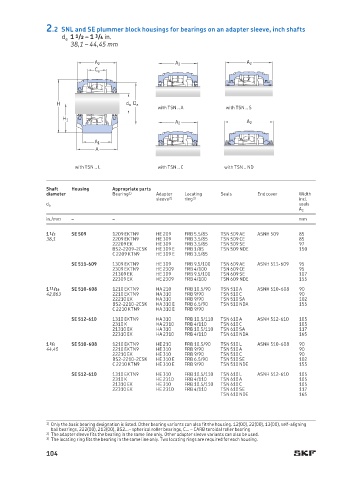

2.2 SNL and SE plummer block housings for bearings on an adapter sleeve, inch shafts
d a 1 1 /2 – 1 3 /4 in.
38,1 – 44,45 mm

A 2 A 2 A 2
C a

H d a D a
with TSN .. A with TSN .. S
H 1
A 2 A 2

A 1
A

with TSN .. L with TSN .. C with TSN .. ND

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End cover Width
sleeve 2) ring 3) incl.
seals
d a
A 2
in./mm – – mm
1 1 /2 SE 509 1209 EKTN9 HE 209 FRB 5.5/85 TSN 509 AE ASNH 509 85
38,1 2209 EKTN9 HE 309 FRB 3.5/85 TSN 509 CE 85
22209 EK HE 309 FRB 3.5/85 TSN 509 SE 97
BS2-2209-2CSK HE 309 E FRB 1/85 TSN 509 NDE 150
C 2209 KTN9 HE 309 E FRB 3.5/85
SE 511-609 1309 EKTN9 HE 309 FRB 9.5/100 TSN 609 AE ASNH 511-609 95
2309 EKTN9 HE 2309 FRB 4/100 TSN 609 CE 95
21309 EK HE 309 FRB 9.5/100 TSN 609 SE 107
22309 EK HE 2309 FRB 4/100 TSN 609 NDE 155
1 11 /16 SE 510-608 1210 EKTN9 HA 210 FRB 10.5/90 TSN 510 A ASNH 510-608 90
42,863 2210 EKTN9 HA 310 FRB 9/90 TSN 510 C 90
22210 EK HA 310 FRB 9/90 TSN 510 SA 102
BS2-2210-2CSK HA 310 E FRB 6.5/90 TSN 510 NDA 155
C 2210 KTN9 HA 310 E FRB 9/90
SE 512-610 1310 EKTN9 HA 310 FRB 10.5/110 TSN 610 A ASNH 512-610 105
2310 K HA 2310 FRB 4/110 TSN 610 C 105
21310 EK HA 310 FRB 10.5/110 TSN 610 SA 117
22310 EK HA 2310 FRB 4/110 TSN 610 NDA 165
1 3 /4 SE 510-608 1210 EKTN9 HE 210 FRB 10.5/90 TSN 510 L ASNH 510-608 90
44,45 2210 EKTN9 HE 310 FRB 9/90 TSN 510 A 90
22210 EK HE 310 FRB 9/90 TSN 510 C 90
BS2-2210-2CSK HE 310 E FRB 6.5/90 TSN 510 SE 102
C 2210 KTN9 HE 310 E FRB 9/90 TSN 510 NDE 155
SE 512-610 1310 EKTN9 HE 310 FRB 10.5/110 TSN 610 L ASNH 512-610 105
2310 K HE 2310 FRB 4/110 TSN 610 A 105
21310 EK HE 310 FRB 10.5/110 TSN 610 C 105
22310 EK HE 2310 FRB 4/110 TSN 610 SE 117
TSN 610 NDE 165

1) Only the basic bearing designation is listed. Other bearing variants can also fit the housing. 12(00), 22(00), 13(00), self-aligning
ball bearings, 222(00), 213(00), BS2…– spherical roller bearings, C… – CARB toroidal roller bearing
2) The adapter sleeve fits the bearing in the same line only. Other adapter sleeve variants can also be used.
3) The locating ring fits the bearing in the same line only. Two locating rings are required for each housing.
