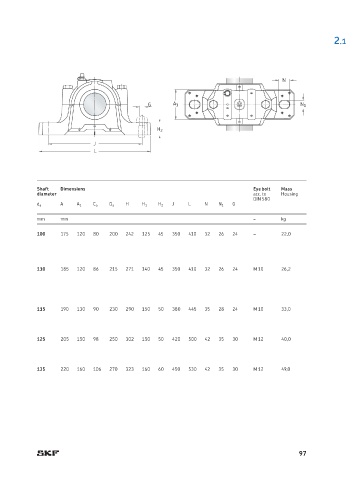

Page 101 - SKF-bearing-housings
P. 101
2.1
N
G A 1 N 1
H 2
J
L
Shaft Dimensions Eye bolt Mass
diameter acc. to Housing
DIN 580
A H J L N G
d a A 1 C a D a H 1 H 2 N 1
mm mm – kg
100 175 120 80 200 242 125 45 350 410 32 26 24 – 22,0
110 185 120 86 215 271 140 45 350 410 32 26 24 M 10 26,2
115 190 130 90 230 290 150 50 380 445 35 28 24 M 10 33,0
125 205 150 98 250 302 150 50 420 500 42 35 30 M 12 40,0
135 220 160 106 270 323 160 60 450 530 42 35 30 M 12 49,0
