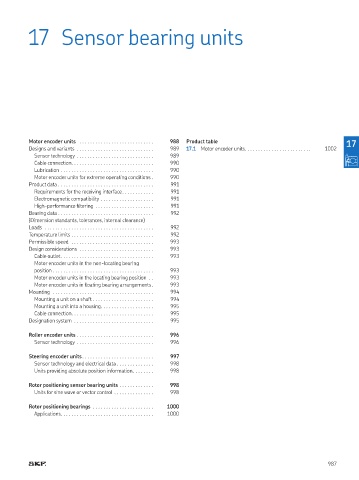

17 Sensor bearing units

Motor encoder units 988 Product table 17
Designs and variants 989 17.1 Motor encoder units 1002
Sensor technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 989
Cable connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 990
Lubrication 990
Motor encoder units for extreme operating conditions 990
Product data 991
Requirements for the receiving interface 991
Electromagnetic compatibility 991
High-performance iltering 991
Bearing data 992
(Dimension standards, tolerances, internal clearance)
Loads 992
Temperature limits 992
Permissible speed 993
Design considerations 993
Cable outlet 993
Motor encoder units in the non-locating bearing
position 993
Motor encoder units in the locating bearing position 993
Motor encoder units in loating bearing arrangements 993
Mounting 994
Mounting a unit on a shaft 994
Mounting a unit into a housing 995
Cable connection 995
Designation system 995

Roller encoder units 996
Sensor technology 996

Steering encoder units 997
Sensor technology and electrical data 998
Units providing absolute position information 998

Rotor positioning sensor bearing units 998
Units for sine wave or vector control 998

Rotor positioning bearings 1000
Applications 1000

987
