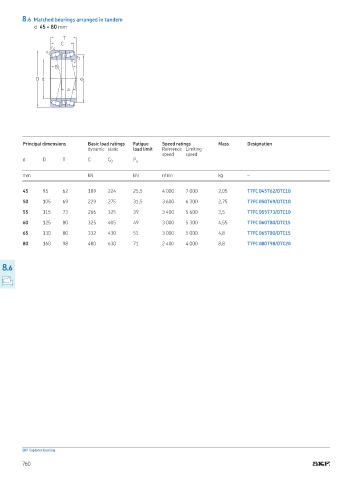

8.6 Matched bearings arranged in tandem
d 45 – 80 mm

T
C
r 4
r 3
r 1
r 2
B
D d d 1
a

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation
dynamic static load limit Reference Limiting
speed speed
d D T C C 0 P u

mm kN kN r/min kg –

45 95 62 189 224 25,5 4 000 7 000 2,05 T7FC 045T62/DTC10

50 105 69 229 275 31,5 3 600 6 300 2,75 T7FC 050T69/DTC10

55 115 73 266 325 39 3 400 5 600 3,5 T7FC 055T73/DTC10

60 125 80 325 405 49 3 000 5 300 4,55 T7FC 060T80/DTC15

65 130 80 332 430 51 3 000 5 000 4,8 T7FC 065T80/DTC15

80 160 98 480 630 71 2 400 4 000 8,8 T7FC 080T98/DTC20

8.6

SKF Explorer bearing
