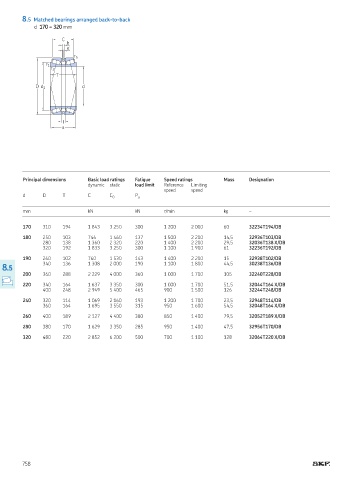

8.5 Matched bearings arranged back-to-back
d 170 – 320 mm

C
b
K
r 5
r 1
r 2
T

D d 1 d

l
a

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation
dynamic static load limit Reference Limiting
speed speed
d D T C C 0 P u

mm kN kN r/min kg –

170 310 194 1 843 3 250 300 1 200 2 000 60 32234T194/DB

180 250 103 746 1 460 137 1 500 2 200 14,5 32936T103/DB
280 138 1 360 2 320 220 1 400 2 200 29,5 32036T138 X/DB
320 192 1 833 3 250 300 1 100 1 900 61 32236T192/DB

190 260 102 760 1 530 143 1 400 2 200 15 32938T102/DB
340 136 1 308 2 000 190 1 100 1 800 44,5 30238T136/DB
8.5
200 360 288 2 229 4 000 360 1 000 1 700 105 32240T228/DB

220 340 164 1 637 3 350 300 1 000 1 700 51,5 32044T164 X/DB
400 248 2 949 5 400 465 900 1 500 126 32244T248/DB

240 320 114 1 069 2 160 193 1 200 1 700 23,5 32948T114/DB
360 164 1 695 3 550 315 950 1 600 54,5 32048T164 X/DB

260 400 189 2 127 4 400 380 850 1 400 79,5 32052T189 X/DB

280 380 170 1 629 3 350 285 950 1 400 47,5 32956T170/DB

320 480 220 2 852 6 200 500 700 1 100 128 32064T220 X/DB
