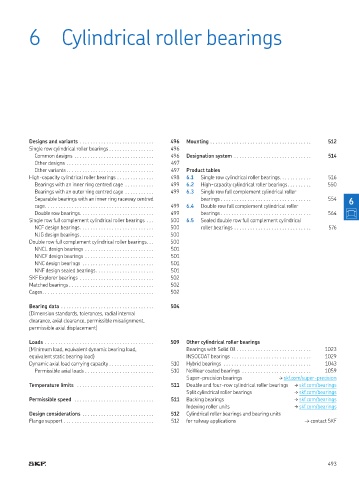

Cylindrical roller bearings

6 Cylindrical roller bearings

Designs and variants 496 Mounting 512
Single row cylindrical roller bearings 496
Common designs 496 Designation system 514
Other designs 497
Other variants 497 Product tables
High-capacity cylindrical roller bearings 498 6.1 Single row cylindrical roller bearings 516
Bearings with an inner ring centred cage 499 6.2 High-capacity cylindrical roller bearings 550
Bearings with an outer ring centred cage 499 6.3 Single row full complement cylindrical roller
Separable bearings with an inner ring raceway centred bearings 554 6
cage 499 6.4 Double row full complement cylindrical roller
Double row bearings 499 bearings 564
Single row full complement cylindrical roller bearings 500 6.5 Sealed double row full complement cylindrical
NCF design bearings 500 roller bearings 576
NJG design bearings 500
Double row full complement cylindrical roller bearings 500
NNCL design bearings 501
NNCF design bearings 501
NNC design bearings 501
NNF design sealed bearings 501
SKF Explorer bearings 502
Matched bearings 502
Cages 502

Bearing data 504
(Dimension standards, tolerances, radial internal
clearance, axial clearance, permissible misalignment,
permissible axial displacement)

Loads 509 Other cylindrical roller bearings
(Minimum load, equivalent dynamic bearing load, Bearings with Solid Oil 1023
equivalent static bearing load) INSOCOAT bearings 1029
Dynamic axial load carrying capacity 510 Hybrid bearings 1043
Permissible axial loads 510 NoWear coated bearings . . . . . . . . . . . . . . . . . . . . . . . . . . 1059
Super-precision bearings † skf com/super-precision
Temperature limits 511 Double and four-row cylindrical roller bearings † skf com/bearings
Split cylindrical roller bearings † skf com/bearings
Permissible speed 511 Backing bearings † skf com/bearings
Indexing roller units † skf com/bearings
Design considerations 512 Cylindrical roller bearings and bearing units
Flange support 512 for railway applications → contact SKF

493
