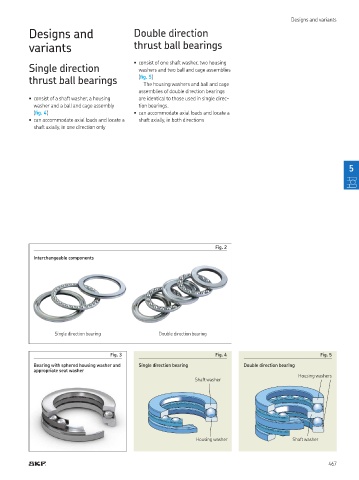

Page 469 - Rollingbearings

Designs and variants
Designs and Double direction

variants thrust ball bearings

• consist of one shaft washer, two housing
Single direction washers and two ball and cage assemblies

thrust ball bearings (ig. 5)
The housing washers and ball and cage
assemblies of double direction bearings
• consist of a shaft washer, a housing are identical to those used in single direc-
washer and a ball and cage assembly tion bearings
(ig. 4) • can accommodate axial loads and locate a
• can accommodate axial loads and locate a shaft axially, in both directions
shaft axially, in one direction only

5

Fig. 2
Interchangeable components

Single direction bearing Double direction bearing

Fig. 3 Fig. 4 Fig. 5
Bearing with sphered housing washer and Single direction bearing Double direction bearing
appropriate seat washer
Housing washers
Shaft washer

Housing washer Shaft washer

467
