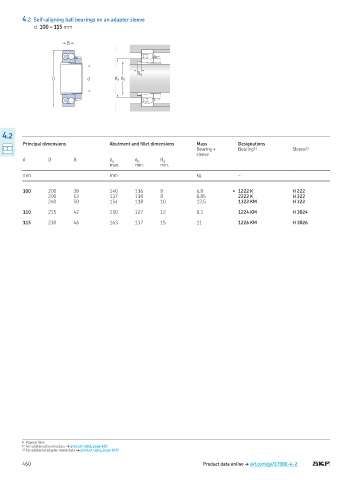

4.2 Self-aligning ball bearings on an adapter sleeve
d 100 – 115 mm
B
B a
D d d a d b
4.2
Principal dimensions Abutment and illet dimensions Mass Designations
Bearing + Bearing 1) Sleeve 2)
sleeve
d D B d a d b B a
max. min. min.
mm mm kg –
100 200 38 140 116 8 6,8 ▶ 1222 K H 222
200 53 137 118 8 8,85 2222 K H 322
240 50 154 118 10 13,5 1322 KM H 322
110 215 42 150 127 12 8,3 1224 KM H 3024
115 230 46 163 137 15 11 1226 KM H 3026
▶ Popular item
1) For additional bearing data → product table, page 450
2) For additional adapter sleeve data → product table, page 1072
