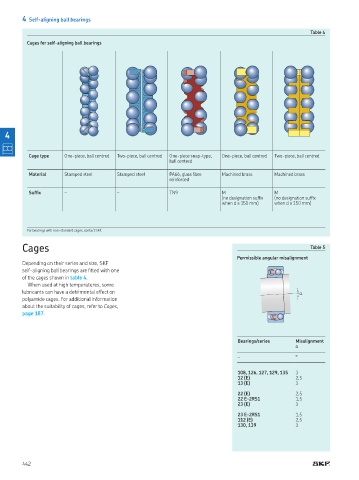

4 Self-aligning ball bearings
Table 4
Cages for self-aligning ball bearings

4

Cage type One-piece, ball centred Two-piece, ball centred One-piece snap-type, One-piece, ball centred Two-piece, ball centred
ball centred

Material Stamped steel Stamped steel PA66, glass ibre Machined brass Machined brass
reinforced
Sufix – – TN9 M M
(no designation sufix (no designation sufix
when d ≥ 150 mm) when d ≥ 150 mm)

For bearings with non-standard cages, contact SKF

Cages Table 5

Permissible angular misalignment
Depending on their series and size, SKF
self-aligning ball bearings are itted with one
of the cages shown in table 4.
When used at high temperatures, some
lubricants can have a detrimental effect on α
polyamide cages. For additional information
about the suitability of cages, refer to Cages,
page 187.

Bearings/series Misalignment
α
– °

108, 126, 127, 129, 135 3
12 (E) 2,5
13 (E) 3
22 (E) 2,5
22 E-2RS1 1,5
23 (E) 3
23 E-2RS1 1,5
112 (E) 2,5
130, 139 3
