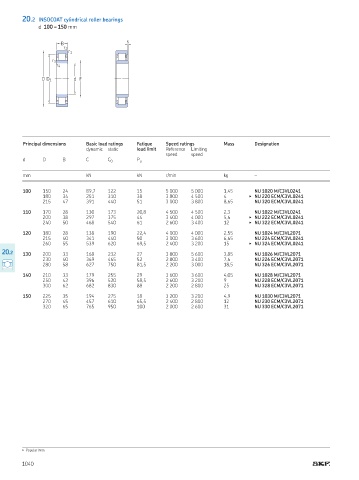

20.2 INSOCOAT cylindrical roller bearings
d 100 – 150 mm
B s
r 2
r 1
r 3
r 4
D D 1 d F
Principal dimensions Basic load ratings Fatique Speed ratings Mass Designation
dynamic static load limit Reference Limiting
speed speed
d D B C C 0 P u
mm kN kN r/min kg –
100 150 24 89,7 122 15 5 000 5 000 1,45 NU 1020 M/C3VL0241
180 34 251 310 38 3 800 4 500 4 ▶ NU 220 ECM/C3VL0241
215 47 391 440 51 3 000 3 800 8,65 NU 320 ECM/C3VL0241
110 170 28 130 173 20,8 4 500 4 500 2,3 NU 1022 M/C3VL0241
200 38 297 375 44 3 400 4 000 5,6 ▶ NU 222 ECM/C3VL0241
240 50 468 540 61 2 600 3 400 12 ▶ NU 322 ECM/C3VL0241
120 180 28 138 190 22,4 4 000 4 000 2,55 NU 1024 M/C3VL2071
215 40 341 440 50 3 000 3 600 6,65 NU 224 ECM/C3VL0241
260 55 539 620 69,5 2 400 3 200 15 ▶ NU 324 ECM/C3VL0241
20.2 130 200 33 168 232 27 3 800 5 600 3,85 NU 1026 M/C3VL2071
230 40 369 465 52 2 800 3 400 7,6 NU 226 ECM/C3VL2071
280 58 627 750 81,5 2 200 3 000 18,5 NU 326 ECM/C3VL2071
140 210 33 179 255 29 3 600 3 600 4,05 NU 1028 M/C3VL2071
250 42 396 520 58,5 2 600 3 200 9 NU 228 ECM/C3VL2071
300 62 682 830 88 2 200 2 800 25 NU 328 ECM/C3VL2071
150 225 35 194 275 18 3 200 3 200 4,9 NU 1030 M/C3VL2071
270 45 457 610 65,5 2 400 2 800 12 NU 230 ECM/C3VL2071
320 65 765 950 100 2 000 2 600 31 NU 330 ECM/C3VL2071
▶ Popular item
