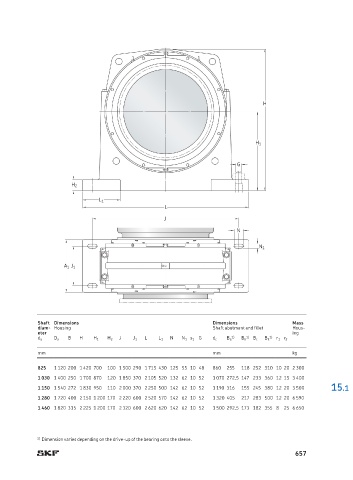

Shaft Dimensions Dimensions Mass
diam- Housing Shaft abutment and fillet Hous-
eter ing
B H J L N G 1)
d a D a H 1 H 2 J 1 L 1 N 1 s 1 d c B a B b 1) B c B d 1) r 1 r 2
mm mm kg
825 1 120 200 1 420 700 100 1 500 290 1 715 430 125 55 10 48 860 255 118 252 310 10 20 2 300
1 030 1 400 250 1 700 870 120 1 850 370 2 105 520 132 62 10 52 1 070 272,5 147 233 360 12 15 3 400
1 150 1 540 272 1 830 950 110 2 000 370 2 250 500 142 62 10 52 1 190 316 155 245 380 12 20 3 500 15.1
1 280 1 720 400 2 150 1 200 170 2 220 600 2 520 570 142 62 10 52 1 320 405 217 283 500 12 20 6 590
1 460 1 820 315 2 225 1 200 170 2 320 600 2 620 620 142 62 10 52 1 500 292,5 173 182 355 8 25 6 650

1) Dimension varies depending on the drive-up of the bearing onto the sleeve.
