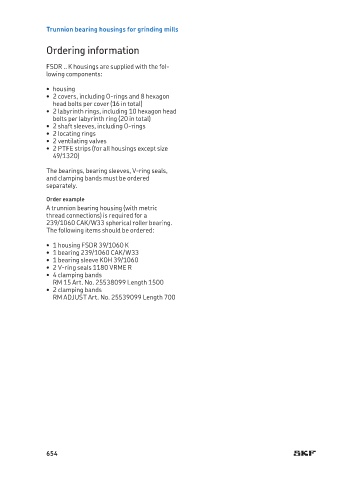

Trunnion bearing housings for grinding mills

Ordering information

FSDR .. K housings are supplied with the fol-
lowing components:

• housing
• 2 covers, including O-rings and 8 hexagon
head bolts per cover (16 in total)
• 2 labyrinth rings, including 10 hexagon head
bolts per labyrinth ring (20 in total)
• 2 shaft sleeves, including O-rings
• 2 locating rings
• 2 ventilating valves
• 2 PTFE strips (for all housings except size
49/1320)
The bearings, bearing sleeves, V-ring seals,
and clamping bands must be ordered
separately.

Order example
A trunnion bearing housing (with metric
thread connections) is required for a
239/1060 CAK/W33 spherical roller bearing.
The following items should be ordered:
• 1 housing FSDR 39/1060 K
• 1 bearing 239/1060 CAK/W33
• 1 bearing sleeve KOH 39/1060
• 2 V-ring seals 1180 VRME R
• 4 clamping bands
RM 15 Art. No. 25538099 Length 1500
• 2 clamping bands
RM ADJUST Art. No. 25539099 Length 700
