Accessories

Condition monitoring Accessories

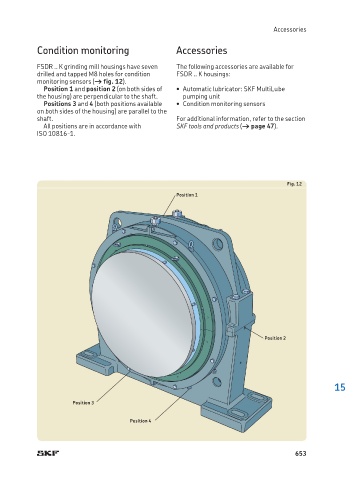

FSDR .. K grinding mill housings have seven The following accessories are available for
drilled and tapped M8 holes for condition FSDR .. K housings:
monitoring sensors († fig. 12).
Position 1 and position 2 (on both sides of • Automatic lubricator: SKF MultiLube
the housing) are perpendicular to the shaft. pumping unit
Positions 3 and 4 (both positions available • Condition monitoring sensors
on both sides of the housing) are parallel to the
shaft. For additional information, refer to the section
All positions are in accordance with SKF tools and products († page 47).
ISO 10816-1.

Fig. 12
Position 1

Position 2

15

Position 3

Position 4

653
