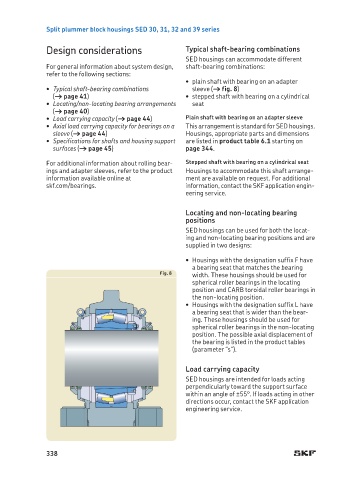

Split plummer block housings SED 30, 31, 32 and 39 series

Design considerations Typical shaft-bearing combinations
SED housings can accommodate different
For general information about system design, shaft-bearing combinations:
refer to the following sections:
• plain shaft with bearing on an adapter
• Typical shaft-bearing combinations sleeve († fig. 8)
(† page 41) • stepped shaft with bearing on a cylindrical
• Locating/non-locating bearing arrangements seat
(† page 40)
• Load carrying capacity († page 44) Plain shaft with bearing on an adapter sleeve
• Axial load carrying capacity for bearings on a This arrangement is standard for SED housings.
sleeve († page 44) Housings, appropriate parts and dimensions
• Specifications for shafts and housing support are listed in product table 6.1 starting on
surfaces († page 45) page 344.

For additional information about rolling bear- Stepped shaft with bearing on a cylindrical seat
ings and adapter sleeves, refer to the product Housings to accommodate this shaft arrange-
information available online at ment are available on request. For additional
skf.com/bearings. information, contact the SKF application engin-
eering service.

Locating and non-locating bearing
positions
SED housings can be used for both the locat-
ing and non-locating bearing positions and are
supplied in two designs:
• Housings with the designation suffix F have
a bearing seat that matches the bearing
Fig. 8
width. These housings should be used for
spherical roller bearings in the locating
position and CARB toroidal roller bearings in
the non-locating position.
• Housings with the designation suffix L have
a bearing seat that is wider than the bear-
ing. These housings should be used for
spherical roller bearings in the non-locating
position. The possible axial displacement of
the bearing is listed in the product tables
(parameter “s”).

Load carrying capacity
SED housings are intended for loads acting
perpendicularly toward the support surface
within an angle of ±55°. If loads acting in other
directions occur, contact the SKF application
engineering service.
