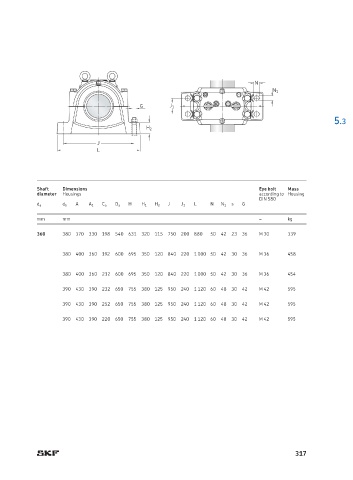

Page 321 - SKF-bearing-housings

N
N 1

G J 1
5.3
H 2

J
L

Shaft Dimensions Eye bolt Mass
diameter Housings according to Housing
DIN 580
A H J L N s G
d a d b A 1 C a D a H 1 H 2 J 1 N 1
mm mm – kg
360 380 370 330 198 540 631 320 115 750 200 880 50 42 23 36 M 30 339

380 400 360 192 600 695 350 120 840 220 1 000 50 42 30 36 M 36 458

380 400 360 212 600 695 350 120 840 220 1 000 50 42 30 36 M 36 454
390 430 390 232 650 755 380 125 950 240 1 120 60 48 30 42 M 42 595

390 430 390 252 650 755 380 125 950 240 1 120 60 48 30 42 M 42 595
390 430 390 220 650 755 380 125 950 240 1 120 60 48 30 42 M 42 595
