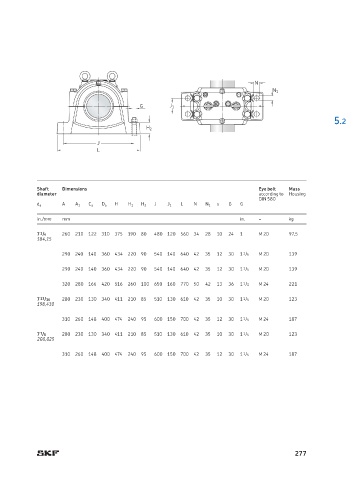

Page 281 - SKF-bearing-housings

N
N 1

G J 1
5.2
H 2

J
L

Shaft Dimensions Eye bolt Mass
diameter according to Housing
DIN 580
A H J L N s G G
d a A 1 C a D a H 1 H 2 J 1 N 1
in./mm mm in. – kg

7 1 /4 260 210 122 310 375 190 80 480 120 560 34 28 10 24 1 M 20 97,5
184,15
290 240 140 360 434 220 90 540 140 640 42 35 12 30 1 1 /4 M 20 139
290 240 140 360 434 220 90 540 140 640 42 35 12 30 1 1 /4 M 20 139

320 280 166 420 516 260 100 650 160 770 50 42 13 36 1 1 /2 M 24 221
7 13 /16 280 230 130 340 411 210 85 510 130 610 42 35 10 30 1 1 /4 M 20 123
198,438
310 260 148 400 474 240 95 600 150 700 42 35 12 30 1 1 /4 M 24 187

7 7 /8 280 230 130 340 411 210 85 510 130 610 42 35 10 30 1 1 /4 M 20 123
200,025
310 260 148 400 474 240 95 600 150 700 42 35 12 30 1 1 /4 M 24 187

277
