16 Cam followers

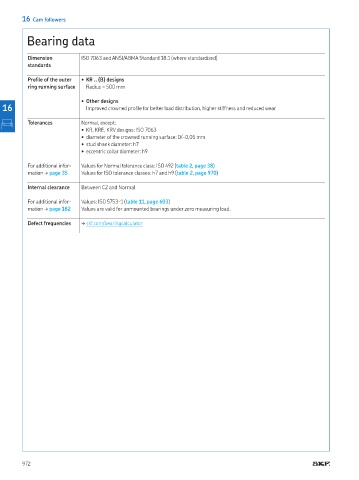

Bearing data

Dimension ISO 7063 and ANSI/ABMA Standard 18 1 (where standardized)
standards

Proile of the outer • KR .. (B) designs
ring running surface Radius = 500 mm

• Other designs
16 Improved crowned proile for better load distribution, higher stiffness and reduced wear

Tolerances Normal, except:
• KR, KRE, KRV designs: ISO 7063
• diameter of the crowned running surface: 0/–0,05 mm
• stud shank diameter: h7
• eccentric collar diameter: h9

For additional infor- Values for Normal tolerance class: ISO 492 (table 2, page 38)
mation † page 35 Values for ISO tolerance classes: h7 and h9 (table 2, page 970)

Internal clearance Between C2 and Normal

For additional infor- Values: ISO 5753-1 (table 11, page 603)
mation † page 182 Values are valid for unmounted bearings under zero measuring load

Defect frequencies † skf com/bearingcalculator

972
