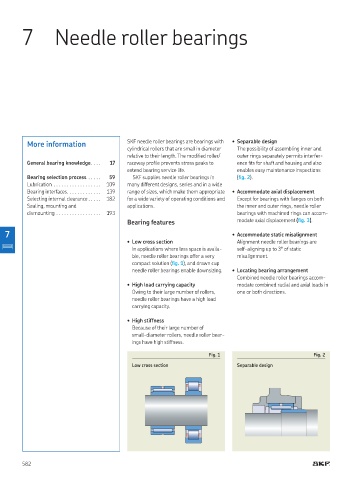

7 Needle roller bearings

Mor SKF needle roller bearings are bearings with • Separable design
More informatione information
cylindrical rollers that are small in diameter The possibility of assembling inner and
relative to their length The modiied roller/ outer rings separately permits interfer-
17
Bearing life and load ratings al bearing knowledge
Gener 63 raceway proile prevents stress peaks to ence its for shaft and housing and also
extend bearing service life enables easy maintenance inspections
59
Design considerations earing selection process 59 SKF supplies needle roller bearings in (ig. 2)
B
160
Bearing systems ubrication
L 109 many different designs, series and in a wide
13
Recommended its earing interfaces 1699 range of sizes, which make them appropriate • Accommodate axial displacement
B
Selec 208 for a wide variety of operating conditions and Except for bearings with langes on both
Abutment and illet dimensions ting internal clearance
182
Sealing, mounting and applications the inner and outer rings, needle roller
dismounting
193
Lubrication 239 bearings with machined rings can accom-
Bearing features modate axial displacement (ig. 3)
Mounting, dismounting and
7 bearing care 271 • Accommodate static misalignment
Mounting instructions for • Low cross section Alignment needle roller bearings are
individual bearings † skf com/mount In applications where less space is availa- self-aligning up to 3° of static
SKF bearing maintenance ble, needle roller bearings offer a very misalignment
handbook (ISBN 978-91-978966-4-1) compact solution (ig. 1), and drawn cup
needle roller bearings enable downsizing • Locating bearing arrangement
Combined needle roller bearings accom-
• High load carrying capacity modate combined radial and axial loads in
Owing to their large number of rollers, one or both directions
needle roller bearings have a high load
carrying capacity
• High stiffness
Because of their large number of
small-diameter rollers, needle roller bear-
ings have high stiffness

Fig. 1 Fig. 2
Low cross section Separable design

582
